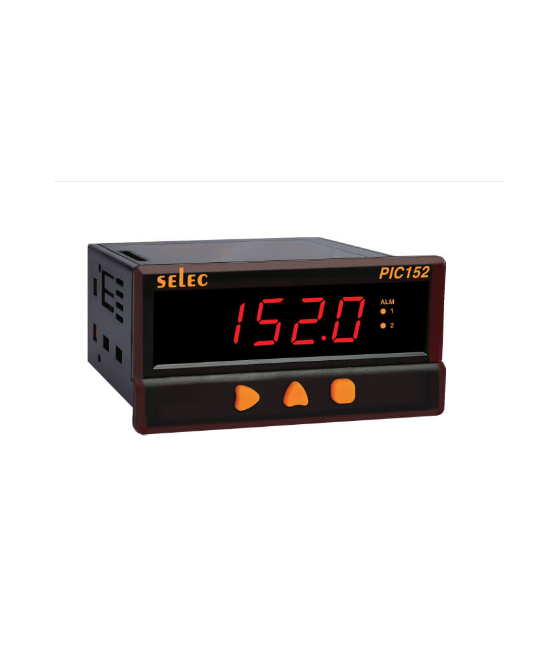

SELEC PIC152A-VI Process Indicator

Display specifications

Display: 4 Digits 7 Segment LED single display

Height of display: 12.7 mm

LED indication: Alarm ON (2 Nos)

Input specifications

Inputs: Thermocouple (J, K, T, R. S) RTD (PT100), DC Analog inputs (-5 to 56mV, 0 to 10V, 0/4 to 20mA)

Resolution: 1/0.1 for TC/ RTD only (fixed 1" resolution for R & S type TC) Decimal point position selectable: 1/0.1/0.01/0.001 for analog input

Indication accuracy

For TC inputs: 0.25% of F.S. ±1

For R & S inputs: 0.5% of F.S. 12" (20 min of warm up time for TC inputs) For RTD input: 0.1% of F.S. ±1" For Analog inputs: ±0.5% of F.S., ± 1 digit (F.S. Full scale)

Temperature unit: "C/"F selectable

Output specifications

Alarm

Relay contact (SPDT)

RELAY 1, 2. NO: 10A 250 VAC/28 VDC

NO/NC: 5A/5A 250 VAC/28 VDC

Retransmission: 0/4 to 20 mA DC, 010 5 VDC, 0 to 10 VDC

Sensor supply: 24 VDC, 30mA

Functional specifications

Alarm: 2

Alarm modes: High alarm, Low alarm, Band, Fall output and fault diagnosis

Hysteresis: 0.1 to 99.9°

Annunciator: Programmable

Relay action: Automatic or Latched

Auxiliary supply specifications

Supply voltage: 90 to 270 VAC/DC (50/60Hz) Optional: 24 VDC

Power consumption: 6 VA max @ 230 VAC

Environment specifications

Temperature Operating. 0°C to 50°C (32 to 122°F); Storage: -20°C to 75°C (-4 to 167°F)

Humidity (non-condensing): 85% RH

Mechanical specifications

Mounting: Panel

Weight: 220 gms
