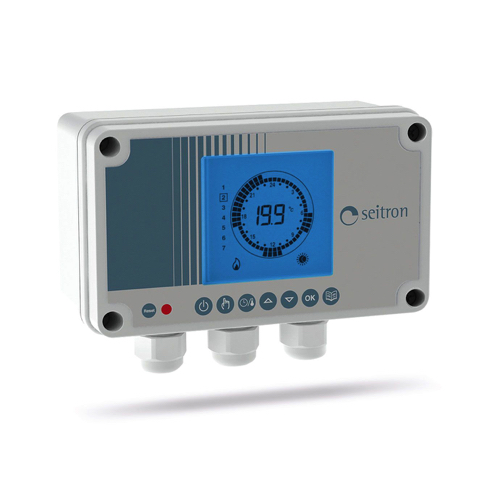

Seitron TAG02M Weekly Digital Programmable Thermostat For Greenhouse (230V, 5.0°C .. 85.0°C)

Power supply: 230V 50-60Hz

Max absorption: 3.5VA

Backlight switch off: 20 seconds if no button is pressed

Setting range Comfort: 5.0°C .. 85.0°C

Setting range Economy: 5.0°C .. 85.0°C

Antifrost ‘AFr’: Off / 0.5°C .. 25.0°C (Default 3.0°C)

Remote sensor offset ‘OFS1’: ±5.0°C (Default 0.0°C)

Remote sensor: NTC 10K Ohm ±1% @ 25°C Beta 3977

Precision: ±1.0°C

Resolution: 0.1°C in range 0.5°C .. 85.0°C / 0.2°C in range -9.9°C .. 0.5°C

Contact rating: 3 x 5(1)A 250V SPST

Protection rating: IP54

Overvoltage category: II

Pollution degree: 2

Tracking Index (PTI): 175

Class of protection against electric shock: II

Rated impulse voltage: 2500V

Number of manual cycles: 1,000

Number of automatic cycles: 100,000

EMC test voltage: 230V 50Hz

EMC test current: 15 mA

Distances tolerances fault mode ‘short’ exclusion: ±0.15mm

Ball pressure test temperature: 75°C

Operating temperature: 0°C .. +40°C

Storage temperature: -10°C .. +50°C

Humidity limits: 10% .. 90% RH non-condensing

Manual
