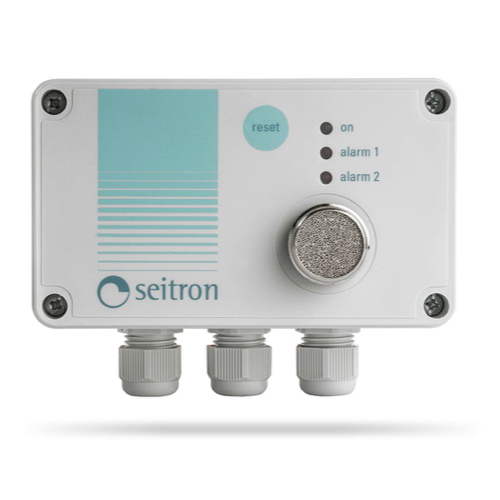

Seitron RGIGP1MSX2 Gas Detector 1 In 2 Out (LPG, 5% .. 20% LEL)

Power supply: 230V~ -15% +10% 50/60 Hz

Electrical absorption: 4VA

Only versions with internal sensor

Sensor type: SnO2 solid state sensor

Sensor lifetime: 5 years

Filter: Stainless steel

Contact rating:

Output 1 relay (RL1): 4 (2) A @ 250V~ SPDT

Output 2 relay (RL2): 4 (2) A @ 250V~ SPST

Delay on relay: ~ 15 sec.

Detected gas: LPG

Alarm threshold: 5% .. 20% LEL

Signalling by led:

Operating: Green led

Alarm 1: Red led

Alarm 2: Red led

Protection degree: IP 54

Back-up battery: 7.5V ±20%, cod.: ACC SGB 12

Operating temperature 0°C .. 40°C

Storage temperature: -10°C .. +50°C

Humidity limits: 20% .. 80% rH non condensing

Size: 134 x 79 x 62 mm (W x H x D)

Weight:~ 550 gr.
