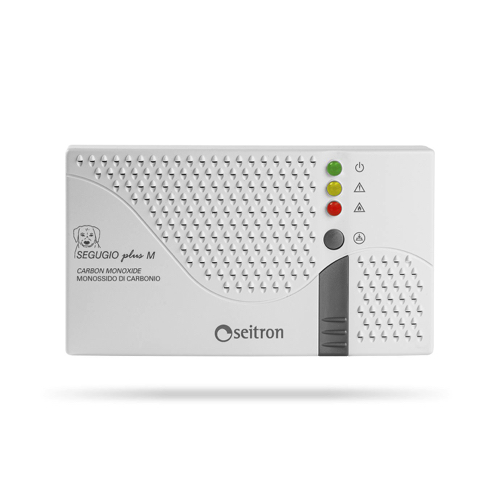

Seitron RGDCOKMP1 Residential Gas Leak Detector Segugio Plus (Carbon monoxide, 6VA)

Power supply: 230V~ -15% +10% 50Hz

Power absorption: 6VA

Output: Sealed relay 6(2)A 250V~ SPDT

Indicators:

Green led: Operating

Yellow led: Fail

Red led: Alarm

Buzzer: Alarm

Sensor: Electrochemical cell

Sensor lifetime: 5 years

Detected gas: Carbon monoxide (CO)

Start counting threshold: 40 ppm (50 mg/m³) ±5%

Operating temperature: 0°C .. 40°C

Storage temperature: -10°C .. +50°C

Humidity limits: 20% .. 80% RH (non condensing)

Protection grade: IP 42

Case: Material: ABS V0 self-extinguishing

Color: Signal white (RAL 9003)

Size: 148 x 84 x 40 mm (W x H x D)

Weight: ~ 380gr.
