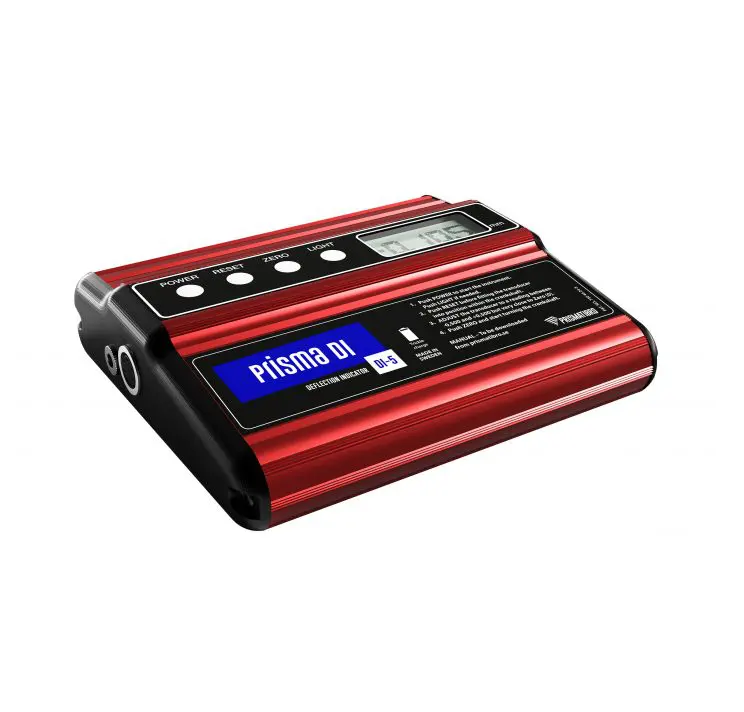

Seiffert Prisma DI-5 Small Crankshaft Deflection Indicator (60-536 mm)

Memory & transfer to PC: No

Export as Excel: No

Measuring distance: 60-536 mm

Measuring range: +/- 1.000 mm

Resolution: 0,001 mm

Zero balance range: +/- 1.000 mm

Zero drift: 0.001 mm / 5 minutes

Instrument operating range: 0-55°C / 32-130°F

Transducer: 60 mm

Transducer operating range: 0-80°C / 32-175°F

Battery: 3.6 V Lithium Ion, rechargeable

Battery Life: 10 hours / charge, shelf life 5 years

Extension bars (invar alloy): 10, 20, 40, 80 and 2 x 160 mm

Cable length: 7 meters

Gross Weight: 4 kg

Dimensions::

Instrument: 190 x 167 x 50 mm

Transducer: Ø 22 x 56 mm

Case: 300 x 280 x 140 mm
