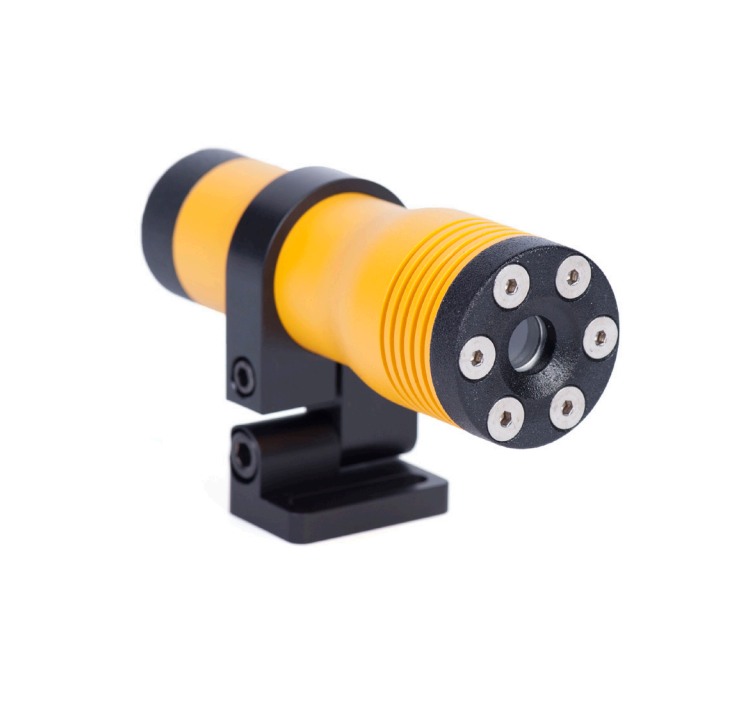

Seiffert LL-1550 Pointing & Line Laser Systems (635nm/523nm)

Optical

Wavelength: 635nm/532nm

Optical Output Power: 1mW up to 50mW

Stability: <1%

Laser Operation: Continuous

Laser Structure: Single Mode Laser

Fan Angle Line Generator: 4º, 15º, 35º, 45º, 60º, 75º, 90º

Minimum Line Thickness: <1mm up to 1 meter

Fan Angle Cross Line: 25º full fan angle

Minimum Line Thickness: <1mm up to 1 meter

Spot Size: Adjustable or Collimated

Minimum Spot Size: <60μm at <10” distance

Environmental

Protection: IP 67 (waterproof, dustproof & sh℃k proof)

Electrical

Operating Voltage: 3 to 5 VDC

Operating Current: <60 mA

Control Circuit: Auto Power Control

AC wall transformer adaptor: DC 4.5 V 700mA

Mechanical

Dimension: 5.5” long x 1.5” diameter

Housing: Machined Aluminum powder coat painted finish

Operating Temperature: -10ºC to +50ºC

Storage Temperature: -40ºC to +80ºC
