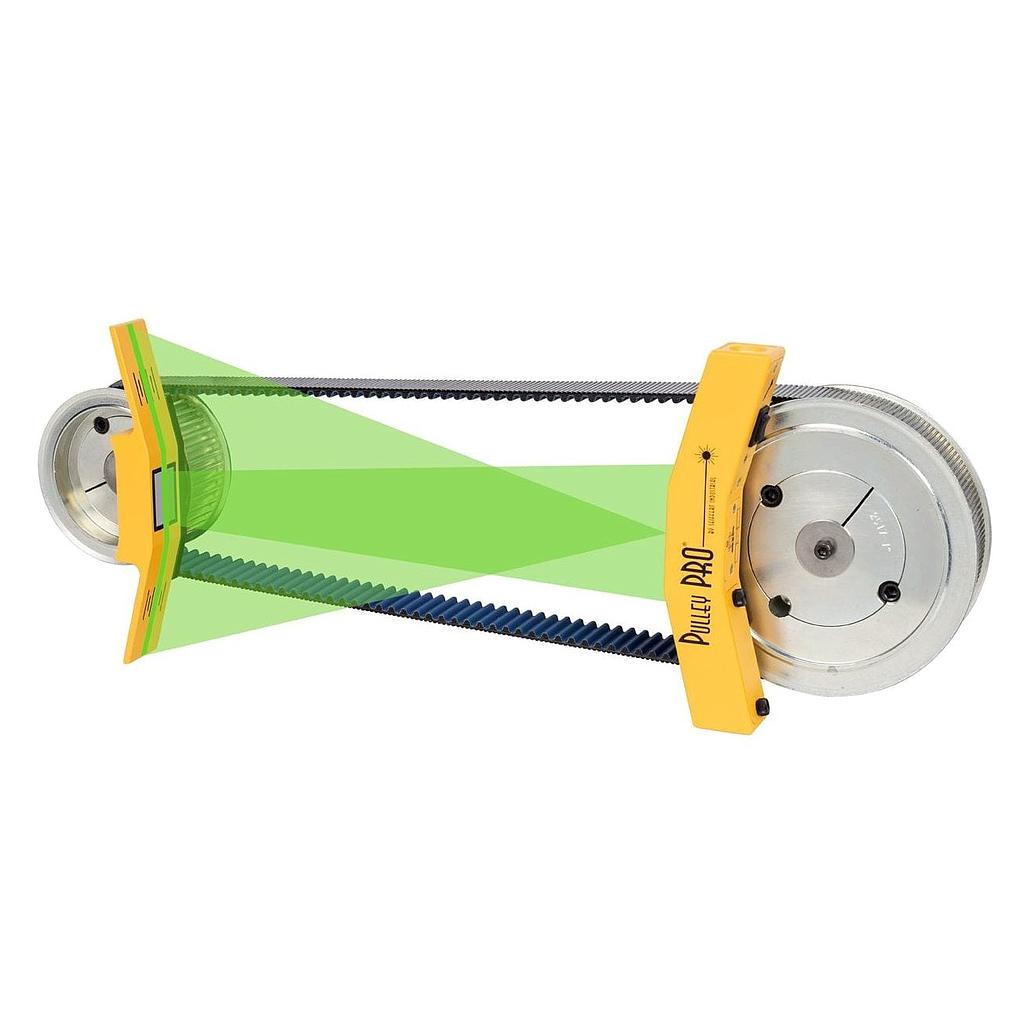

Seiffert KX-3550 Belt Alignment Tool (15ft (4.6m))

TRANSMITTER MODEL KX-3550T

• Operating distance: 15 ft (4.6 m) or better

• Accuracy: 1/16” at 6 ft (1.6 mm at 1.9 m)

• Laser type: 532nm visible laser diode

• Laser power: <1mW, class 2

• Laser line length: 28” at 6 ft (711 mm at 1.9 m)

• Controls: Laser ON/OFF/ON Flashlight Rocker Switch

• Operating time: 25 hours continuous at 72ºF (22ºC)

• Battery type: 2 AAA Alkaline Batteries

• Operating temp: 15ºF (9ºC) to 110ºF (43ºC)

• Storage temp: -4ºF (-20ºC) to 140ºF (60ºC)

• Mounting: Magnetic

• Weight: 17.0 oz. (483 g)

• Dimensions: 1.3” W ( 33mm) x .9” D (23mm) x 8” H (203mm)

• Housing: Aluminum, powder coat finish

REFLECTOR MODEL KX-3550R

• Reflector size: 1” (25 mm) W x 1.4” (36 mm) H

• Mounting: Magnetic

• Weight: 9.4 oz. (266 g)

• Dimensions: 1.25” W (32 mm) x .75” D (19 mm) x 6.5” H (165 mm)

• Housing: Aluminum, powder coat finish

CARRYING CASE

• Material: Black, high density hard polyethylene

• Dimensions: 10.25” W (260 mm) x 8” D (203 mm) x 3” H (76 mm)

• Insert: Die cut foam

• Weight of total package: 2.6 lbs (1.2 kg)
