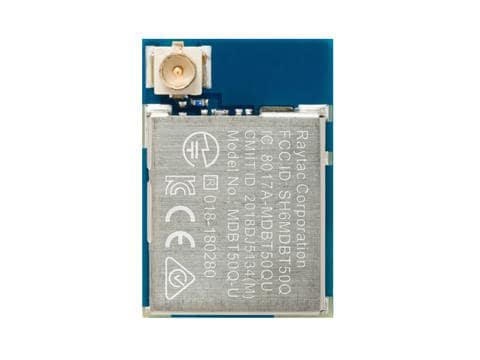

Seeed Studio 113990584 Bluetooth Modules MDBT50Q-U1M nRF52840 Based BLE Module

Core: ARM Cortex M4F

Width: 10.5 mm

Height: 2.2 mm

Length: 15.5 mm

Protocol: BLE, Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.43 GHz

Shielding: Shielded

Dimensions: 10.5 mm x 15.5 mm x 2.2 mm

Memory Size: 256 kB, 1 MB

Sensitivity: - 95 dBm

Unit Weight: 4 g

Output Power: 8 dBm

Interface Type: Serial

Mounting Style: SMD/SMT

Frequency Range: 2.36 GHz to 2.5 GHz

Receiver Sensitivity: - 95 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: u.FL

Operating Supply Voltage: 1.7 V to 5.5 V

Supply Current Receiving: 11.1 mA

Supply Current Transmitting: 14.8 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
