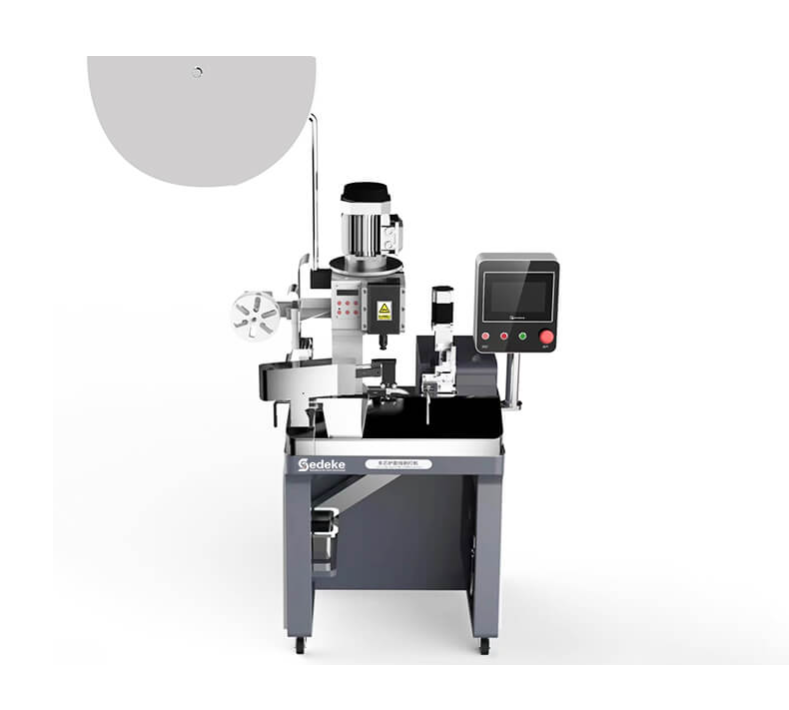

Sedeke TM-20SCM Automatic Multi-core Cable Stripping and Crimping Machine (Φ0.8mm–Φ4mm)

Power supply: 200V–240V 50/60Hz

Air source: 0.4～0.6Mpa

Dimension: 850×550×1350mm

Net weight: 150KG

Applicable wire diameter: Φ0.8mm–Φ4mm

Max. Number of core wires: 12 core sheath wires

Min. Strip length for outer jacket: 2–4 core wire: 15mm / 5–10 core wire: 25mm

Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.

Stripping length: 1.0～10.0mm

Stripping tolerance: 0.05～0.1mm

Position tolerance: 0.05～0.1mm

Crimp terminal: open chain terminal; side feed & end feed

Crimping capacity: 2T

Press stroke: 30mm

Power: 1500W

Number of strokes: 5500PCS/hour
