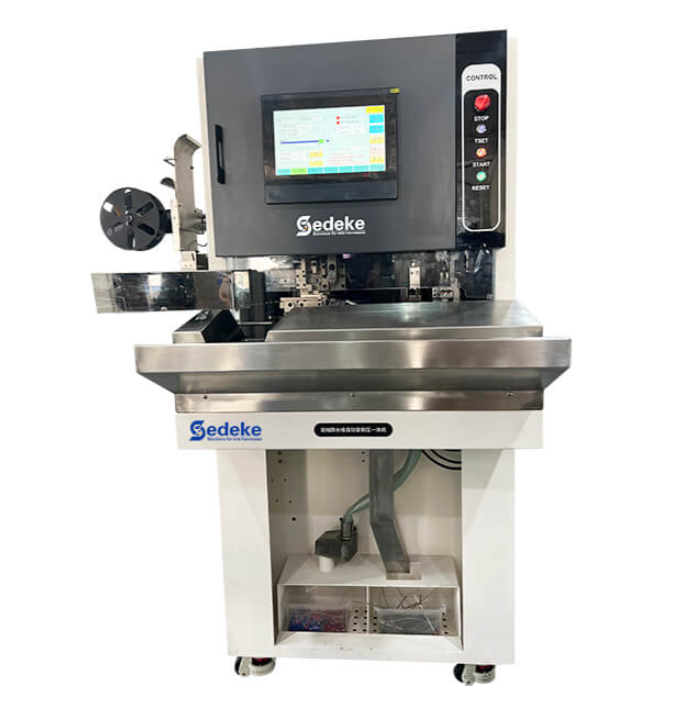

Function : Strip and crimp 2 wires at a time
Power supply : 200V-240V 50/60Hz
Air source : 0.4～0.6Mpa
Dimension : 1160*930*1750mm
Net weight : 250KG
Applicable wire diameter : Φ1mm-φ4mm
Min. strip length for outer jacket : 25mm
Applicable wire : AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.
Stripping length : 1.0～10.0mm
Stripping tolerance: 0.05～0.1mm
Position tolerance : 0.05～0.1mm
Crimp terminal : open chain terminal; side feed
Crimping capacity : 2T or 4T
Press stroke : 40mm
Power : 1800W
Number of strokes: 1800-2000PCS/hour
