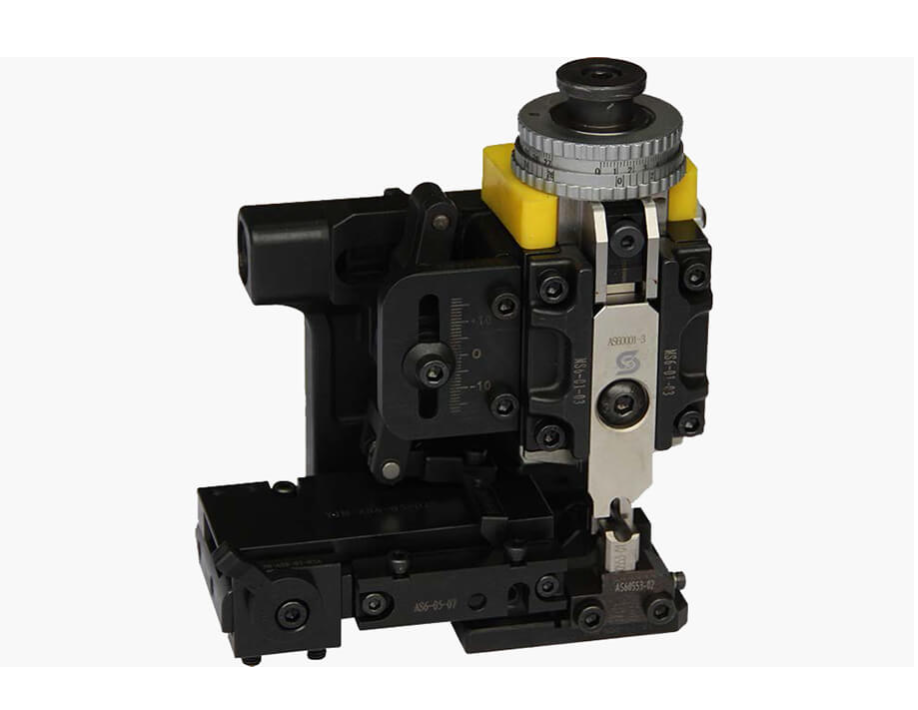

Feed type: Mechanical
Press stroke: 40 or 30 mm (1.57“ or 1.18“)
Cross section range: 0.08 – 10 mm 2 (28 – 7 AWG)
Crimp height adjustment (wire & insulation): Increment: 0.025 mm (0.001”) Max.: 2.0 mm
Terminal pitch range: Min.: 1 mm (0.04”) Max.: 28 mm (1.10”)
Terminal thickness: < 1.2mm (<0.047")
Weight :3.9kg (8.6 lbs.)
Base design: 3-point base clamp with male T-shaped ram adapter
Important note :SEDEKE recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
