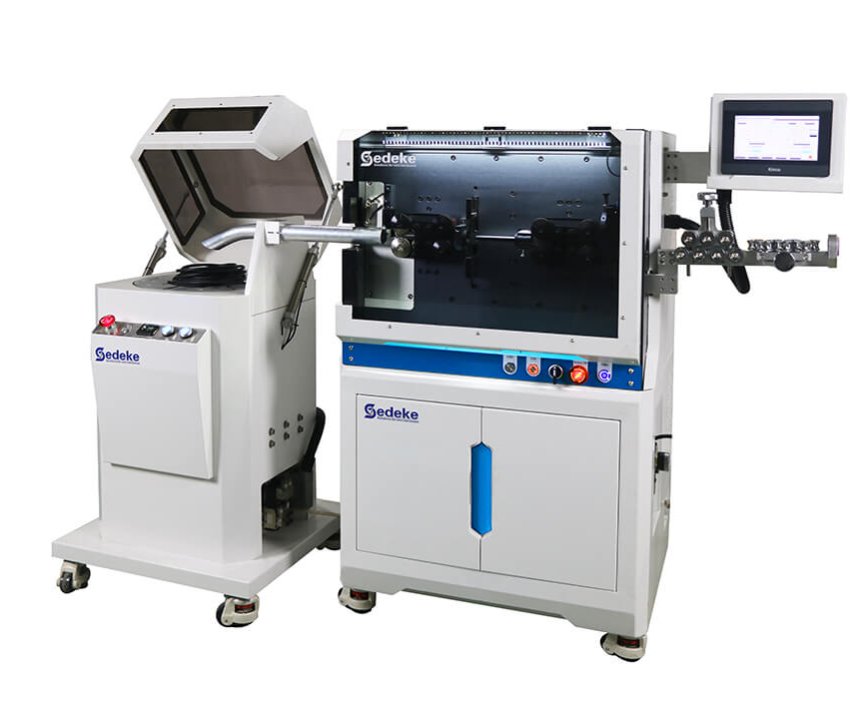

Sedeke ESC-BX30SC Automatic Cable Wire Cutting and Stripping Machine (0.75-30mm²)

Display: 7 inch touch screen

Function: Electric Wire and Cable, Automatic cutting and stripping

Cable type: Wire, Cable, PVC, BVR, PU etc.

Stripping range: 0.75-30mm²

Cutting length: 1-99999.99mm

Cutting tolerance: Less than 0.002L (L = Cutting length)

Stripping length: Front full stripping: 1-120mm; Front half stripping: 1-1500mm; End full stripping: 1-100mm; End half stripping: 1-300mm

Max. diameter of the conduit: Φ18mm

Blade material: High quality imported high speed steel

Production efficiency (pcs/h): 3500PCS/h (depending on length and size of the wire)

Driving method: 16 wheels driven (silent hybrid stepping motor, servo tool rest)

Feeding method: Belt feeding wire, no embossing, no scratches

Remarks: Special cable can be customized, need to send a sample wire for testing

Power: AC220V 50/60Hz

Dimensions (LWH): 68*48*135m

Net weight: 140kg
