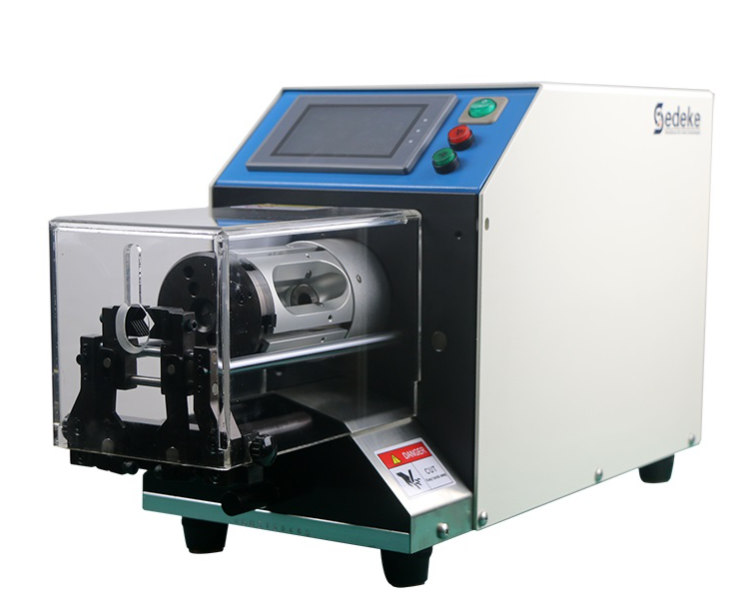

Sedeke CC-4855 Coaxial Cable Stripping Machine

Overall dimensions: 620x 230x330 mm

Weight: 26 kg

Max. processing diameter: 15 mm

Max. stripping length: 85 mm

Min. stripping length: 0.1 mm

Max. stripping layers: 9 layers

Cutting depth unit: 0.01 mm

Drive way: Motor, ball screw drive

Rotary cutting blade: 4 pieces, material: imported tungsten steel

Centering blade: 4 pieces, material: imported high-speed steel

Thread tension device: Automatic centering, motor drive, clamping force program control

Startup mode: Manual, pedaling (optional)

Power: 220V/50Hz, 380W

Work environment: 0–50 degrees, moderate dryness, vibration-free work surface

Production: At least 400–600 pcs/hr (depending on different wire length and operating procedures)
