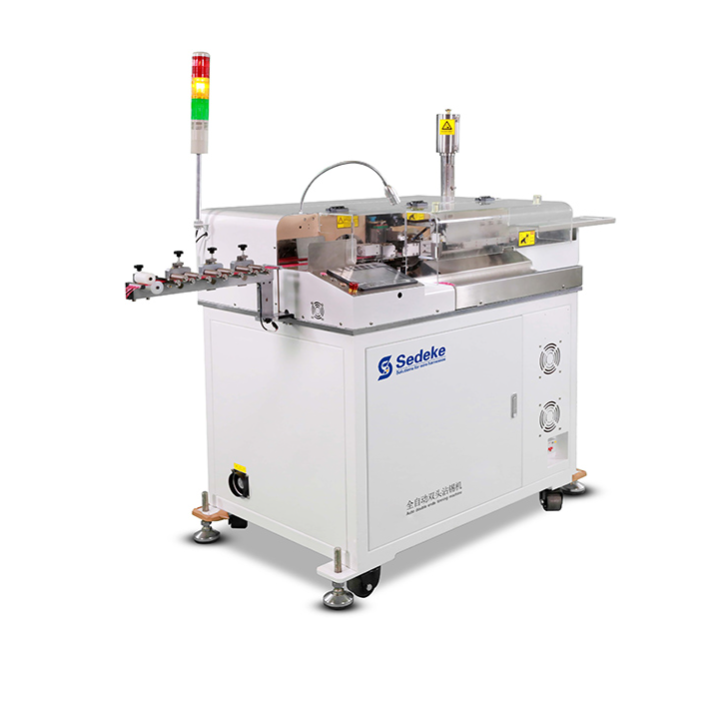

Sedeke ACC-308 (Both ends) Full automatic Soldering machine (AWG16–AWG30)

Suitable wire range: AWG16–AWG30

Cutting length: 10–600mm; Customization: Max. 1500mm

Stripping length: 0–15mm

Cutting Accuracy: ±(0.2%+1)mm

Twisting length: 3–15mm

Tinning length: 1–15mm

Capacity: AWG22–AWG30, can process 1–8 wires at the same time (the same AWG#), the production capacity is about 9000–11000 pieces/hour; AWG20–AWG18, 1–5 wires, about 4000–5500 pieces/hour; AWG18–AWG16, 1–3 wires, about 2700–3000 wires/hour

Power supply: 220VAC single phase; 50–60Hz

Dimensions: 1210×770×1370mm (L×W×H)

Net weight: 400kg

Air supply: 0.5–0.7Mpa (5–7KG/m³)
