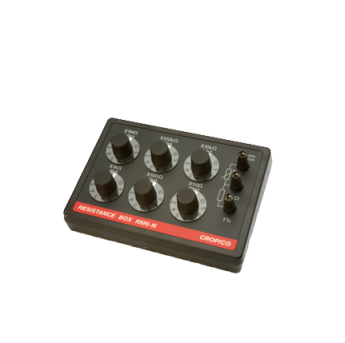

Decade: 10 x 10Ω, 10 x 100Ω, 10 x 1kΩ, 10 x 10kΩ, 10 x 100kΩ, 10 x 1MΩ
Accuracy: ± 1%
Maximum Current: 200mA, 60mA, 20mA, 6mA, 2mA, 0.6mA
Terminals:
Two binding posts will accept 4mm banana plugs and spade tags.
One terminal for connection to panel/earth
Maximum Continuous Working Voltage: 60VDC, 30Vrms
Resistors:
Metal film 0.4W at 70°C
Temperature coefficient ±100ppm/°C
Switches:
Silver plated brass contact resistance <10Ω positive click mechanism
Insulation Resistance >50,000Ω
Residual Resistance: <0.1Ω
Dimensions: 287 x 65 x 65mm / 11 x 2.6 x 2.6” (w x h x d) approx
Mass: 0.48kg/11lbs
Case: Wood with anodised aluminium top panel'
