Seaward PR33D High Voltage Phasing Units (0~19kV, 33kV, 100V, 0.9mA)

Indicator Type: Digital Reading PR33D Digital Leg and Phasing leg

Maximum System voltage: 33kV

Maximum Voltage to earth: 19kV

Measuring Range: 0.00kV - 19kV

Resolution: 100V

Sensitivity: AC/DC

Circuit current (IEC 61234-2): 0.9mA nominal @33kV

Dielectric leakage current (IEC 61234-2): 23µA nominal @ 40kV

Length (mm): 600

Diameter (mm): 25

Handle length (mm): 235

Hand guard height (mm): 23.5

Contact Electrode Type: Domed

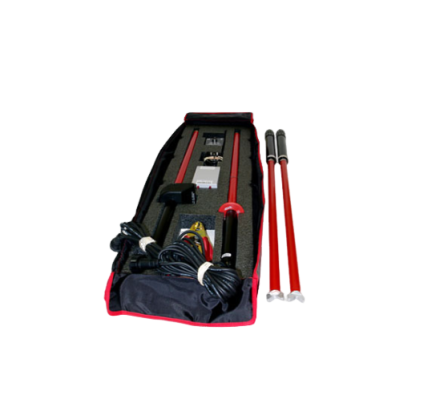

Accessories included:

1 Proving Unit

1 Battery Charger

2 Overhead Line Extensions (1.5m)

All leads and instructions

Supplied with carrying case

Bent adaptors available for use with switch gear
