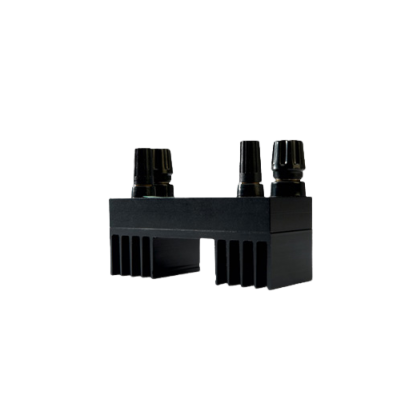

Seaward CR-0.001 Calibration Resistors (1 mΩ, 30A, 30 mV)
Manufacturer: Seaward Model: CR-0.001 P/N: 930004 Origin: United Kingdom - Contact
Resistance Value: 1mΩ
Tolerance ± %: 0.05
Resistivity material: Manganin® sheet <10ppm / ˚C
Max. current in air: 30A
Nominal voltage at voltage taps: 30mV
Storage stability type/year: < 5 x 10-5
Dimensions: 38 x 97 x 41mm / 1.5 x 3.8 x 1.6” (h x w x d) (61mm/ 2.4” with terminals - approx)
Mass: 250g / 9oz approx
Max Operating Voltage: 70VDC, 33Vrms
