Earth Continuity (Rpe)
Test Current: +/- 200mA DC
Measurement Range: 0.05Ω to 19.99Ω
Pass Value: User defined
Insulation Resistance (IR)
Test Voltage: 500V / 250VDC @ 1mA nominal
Measurement Range: 0.10MΩ to 19.99MΩ
Pass Value: User defined
IEC Lead Test
Test Voltage: 5VAC nominal
Test: Live / Neutral Checks for o/c, s/c and crossed polarity
Protective Conductor Current/Load
Test Voltage: Supply voltage, maximum load current 16A
Measurement Range: 0.25mA to 19.99mA
Pass Value: User defined
Touch Current
Test Voltage: Supply voltage, maximum load current 16A
Measurement Range: 0.10mA to 5.0mA
Pass Value: User defined
Load Power/Current
Test Voltage: 230V +10%, -15%, maximum load current 16A
Test Duration: Programmable up to a maximum of 240s
Measurement Range: 0.50A to 16.0A
Substitute (Alternative) Leakage Current
Test Voltages: >25VAC <50VAC
Measurement Range: 0.20mA to 19.99mA
Pass Value: User defined
RCD Test
Test Voltage: 230V +10%, -15%
Test Current: 30mA / 150mA rms sinusoidal
Display Range: 0ms to 2000ms
Test Method: Internal isolation to avoid tripping distribution board RCD
Power Socket Test
Voltage Range: 207V – 253VAC
Indicates configuration of voltage potential:
Line potential phase to earth
Line potential phase to neutral
Line potential neutral to earth
General
Memory size (Apollo 400+): up to 2,000 records
Weight: 1.5kg
Dimensions: 230mm x 150mm x 100mm
Power Source: Mains or rechargeable battery pack
Supplied as standard:

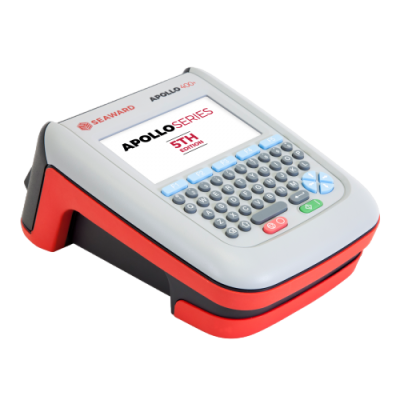

Apollo Instrument 1
Test Lead 1.2m with Alligator Clip, Red 1
IEC Extension Lead, 0.5m 1
Black Mains Lead 1
USB Download Lead 1
UKAS Calibration Certificate 1
Quick Start Guide 1
