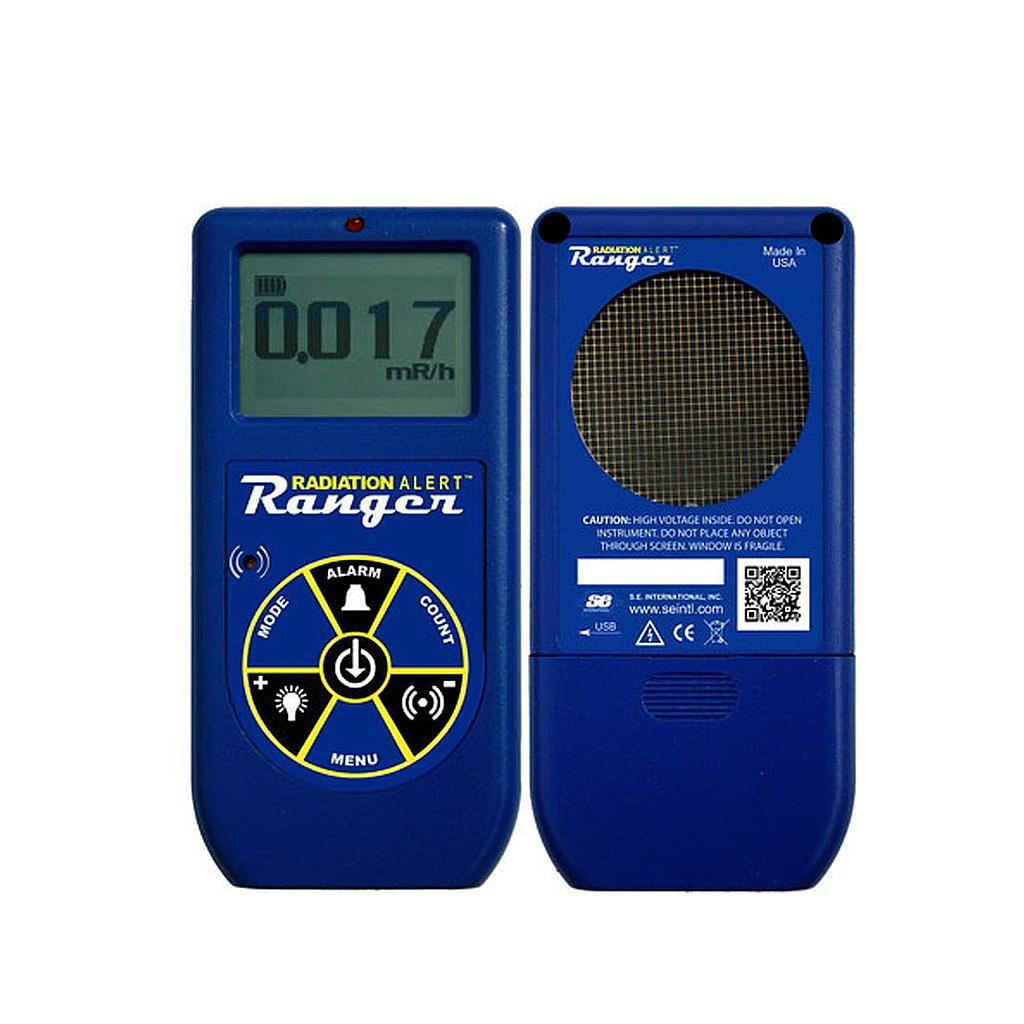

SE International Ranger Radiation Detector (alpha, beta, gamma, x, 0,001 (1µR) to100)

Operating Range

mR/hr – .001 (1µR) to 100

CPM – 0 to 350,000

µSv/hr – .01 to 1000

CPS – 0 to 5000

Total Counts- 1 to 9,999,000 counts

Energy Sensitivity

Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the detector window. 3340 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.

Built-in Efficiencies

Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha

Display

Graphic LCD with Backlight

Anti Saturation

Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.

Averaging Periods

This radiation detector display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.
