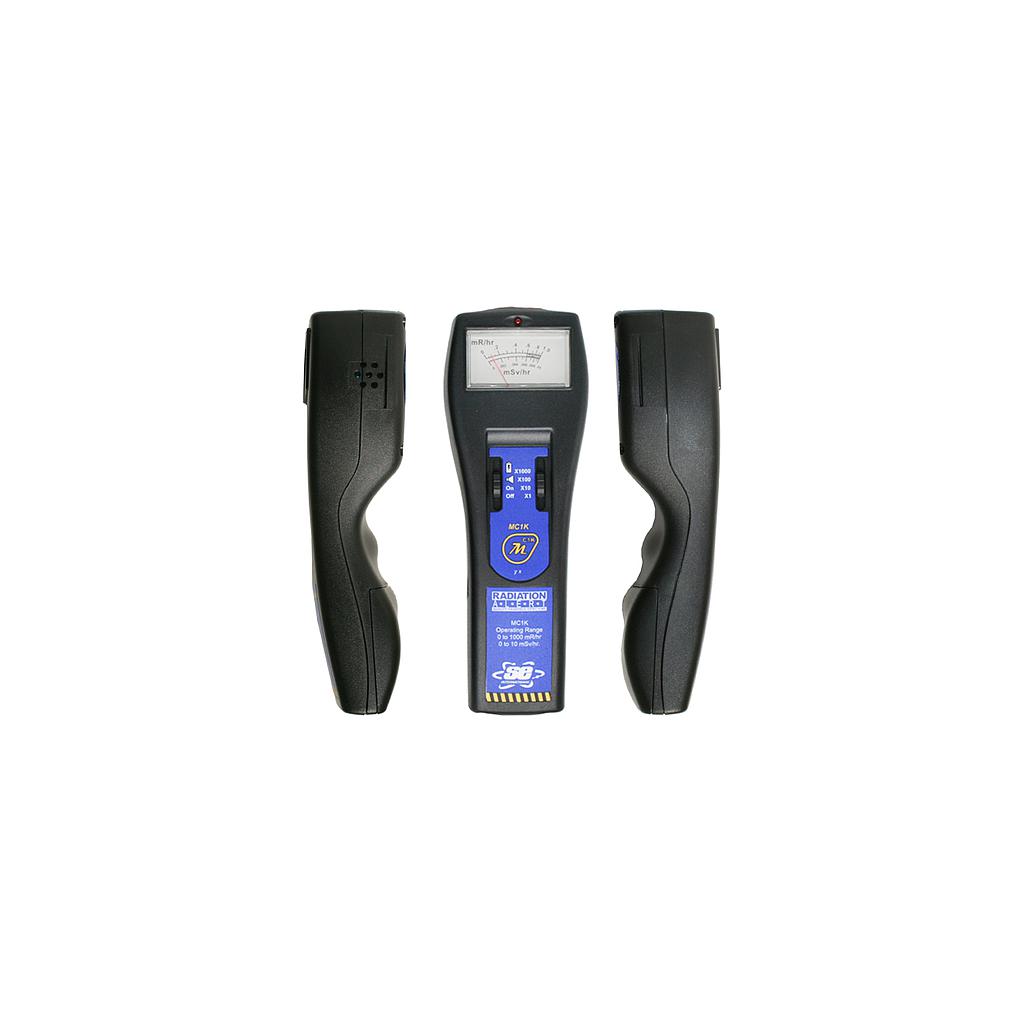

SE International Monitor MC1K Analog Radiation Detector (1000 mR/hr, 4 ranges)

Detector: Energy compensated halogen-quenched GM tube.

Operating Range

X1 position 0 - 1 mR/hr or 0 - .01 mSv/hr

X10 position 1 - 10 mR/hr or 0 - .1 mSv/hr

X100 position 5 - 100 mR/hr or 0 - 1 mSv/hr

X1000 position 50 - 1000 mR/hr or 0 - 10 mSv/hr

Accuracy: Typically ±15% of reading (Cs137)

Energy Sensitivity: Detects gamma and x-rays down to 40 keV. Response is flat from 40 keV up.

Audio Indicator: Internally mounted beeper (can be turned off for silent operation).

Anti-Saturation: Meter will hold at full scale in fields as high as 100 times the maximum reading.

Power Requirements: 9-volt alkaline (included) Approx. 2,000 hrs at normal background

Temperature Range: -20° to 55°C (-4° to 131°F)

Humidity Range: 10% to 70% Non-Condensing

Weight

217 g (7.7 oz) Outputs

3.5 mm headphone jack with pulse out.

Size: 209 x 71 x 50 mm (8.2 x 2.8 x 1.9 in.)

Includes: Carrying Case, Battery

Accessories: Observer Software
