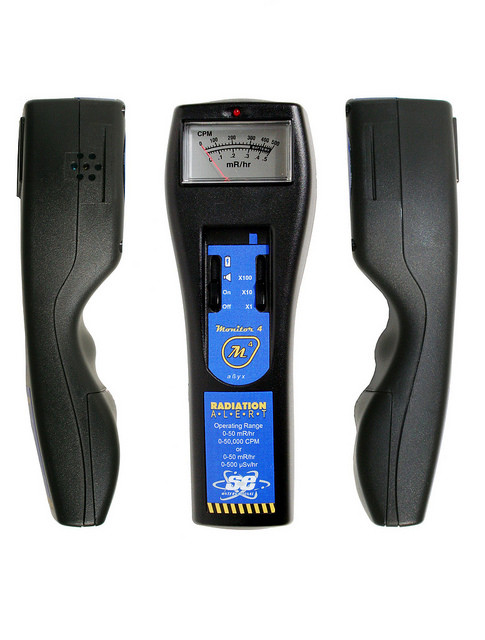

SE International Monitor 4EC Analog Radiation Detector (0-50 mR/hr, M4EC)

Detector: Halogen-quenched GM tube, energy compensated sidewall 2mm tin filter. Thin mica window 1.5-2.0 mg/cm2 thick.

Energy Sensitivity

1000 CPM/mR/hr (Cs137). 4EC is the same as M4 except the energy response for gamma and x-rays through the detector sidewall is flat within +61% or -26% over the range of 40 keV to 100 keV, and within +35% or -17% over the range of 100 keV to 1.3 MeV.

Operating Range

0-.5, 0-5, 0-50 mR/hr

0-500, 0-5,000, 0-50,000 CPM or

0-5, 0-50, 0-500 µSv/hr (SI Scale Meter Option)

Accuracy

Typically ±15% of reading (Cs137)

Display

Analog Meter holds full scale in fields as high as 100X maximum reading. CPM & mR/hr scale. Optional SI Scale Meter Available

Audio Indicator

Internally mounted beeper

Power Requirements:

9-volt alkaline (included)

Approx. 2,000 hrs at background

Temperature Range: -20° to 55°C (-4° to 131°F)

Humidity Range: 10% to 70% Non-Condensing

Weight: 224 g (7.9 oz)

Outputs

Headphone 3.5mm jack to count to computer or datalogger

Size: 209 x 71 x 50 mm (8.2 x 2.8 x 1.9 in.)

Includes: Carrying Case w/ Belt Clip

Options

SI Meter Option, Observer Software,

NIST Calibration
