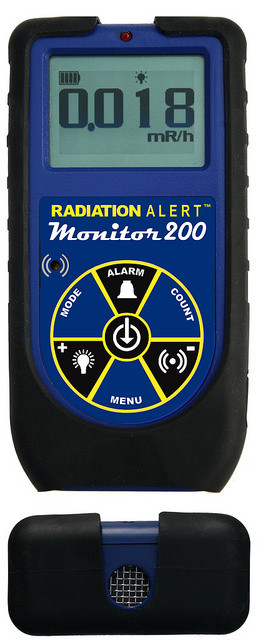

SE International Monitor 200 Radiation Detector (CPM: 0 ~ 235,400)

Detector: Halogen-quenched GM tube with thin mica end window. Mica window density 1.5-2.0 mg/cm2. Effective window diameter is .360 inch. Side wall is .012 inch thick.

Operating Range

mR/hr – .001 (1µR) to 200 mR/hr

µSv/hr – .01 to 2000

CPM – 0 to 235,400

CPS – 0 to 3923

Total Counts – 1 to 9,999,000 counts

Energy Sensitivity

1070 CPM/mR/hr referenced to Cs137

Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%.

Detects beta at 50 keV with typical 35% detection efficiency.

Detects beta at 150 keV with typical 75% detection efficiency.

Detects gamma and x-rays down to 10 keV typical through the window, 40 keV minimum through the case.

(Ref to Cs137)

Accuracy of Radiation Detector Device

Referenced to Cs137

Typically ±15% from factory, ±10% with NIST Source Calibration.

Anti-Saturation: Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Selectable Alert Set Range: mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.

Display: Graphic LCD with Backlight.

Outputs

USB for use with Free Observer USB Software for PCs

Bluetooth Option Additoinal: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App

Count Light: Red LED flashes with each count.

Audio Indicator: Sounds with each count (can be switched off for silent operation)

Power Requirements: USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.

Temperature Range: -10° to +50°C (14° to 122°F)

Humidity: 10% to 70% Non-Condensing.

Size: 140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)

Weight: 181 g (0.4 lbs.)

Includes

Carrying Case, Xtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Observer BLE App, Certificate of Conformance

Bluetooth module available for use with Observer BLE APP and Rad Responder

Options: Water Resistant Case , NIST Calibration
