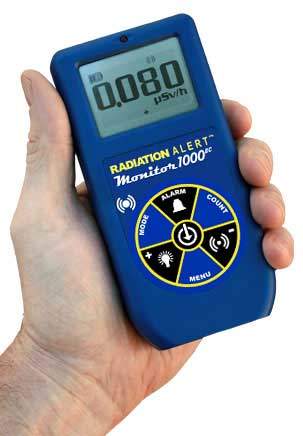

SE International Monitor 1000EC Radiation Detector (CPM: 0 ~ 450,000)

Detector: Energy Compensated Halogen-quenched GM tube.

Operating

mR/hr – .001 (1µR) to 1000 mR/hr

µSv/hr – .01 to 10000

CPM – 0 to 450,000

CPS – 0 to 7500

Total Counts – 1 to 9,999,000 counts

Energy Sensitivity: 450 CPM/mR/hr referenced to Cs137. Detects gamma and x-rays down to 40 keV. Response is flat from 40 keV up.

Accuracy (Referenced to Cs137): Typically ±15% from factory, ±10% with NIST Source Calibration

Anti-Saturation: Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Selectable Alert Set Range: mR/hr .001 – 1000 and CPM 1 – 450,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.

Display: Graphic LCD with Backlight.

Outputs

USB for use with Free Observer USB Software for PCs

Bluetooth Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App

Count Light: Red LED flashes with each count.

Audio Indicator: Sounds with each count (can be switched off for silent operation)

Power Requirements: USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.

Temperature Range: -10° to +50°C (14° to 122°F)

Humidity: 10% to 70% Non-Condensing.

Size: 140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)

Weight: 204 g (0.45 lbs.)

Includes: Carrying Case, Xtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Observer BLE App, Certificate of Conformance

Options: Water Resistant Case, NIST Calibration
