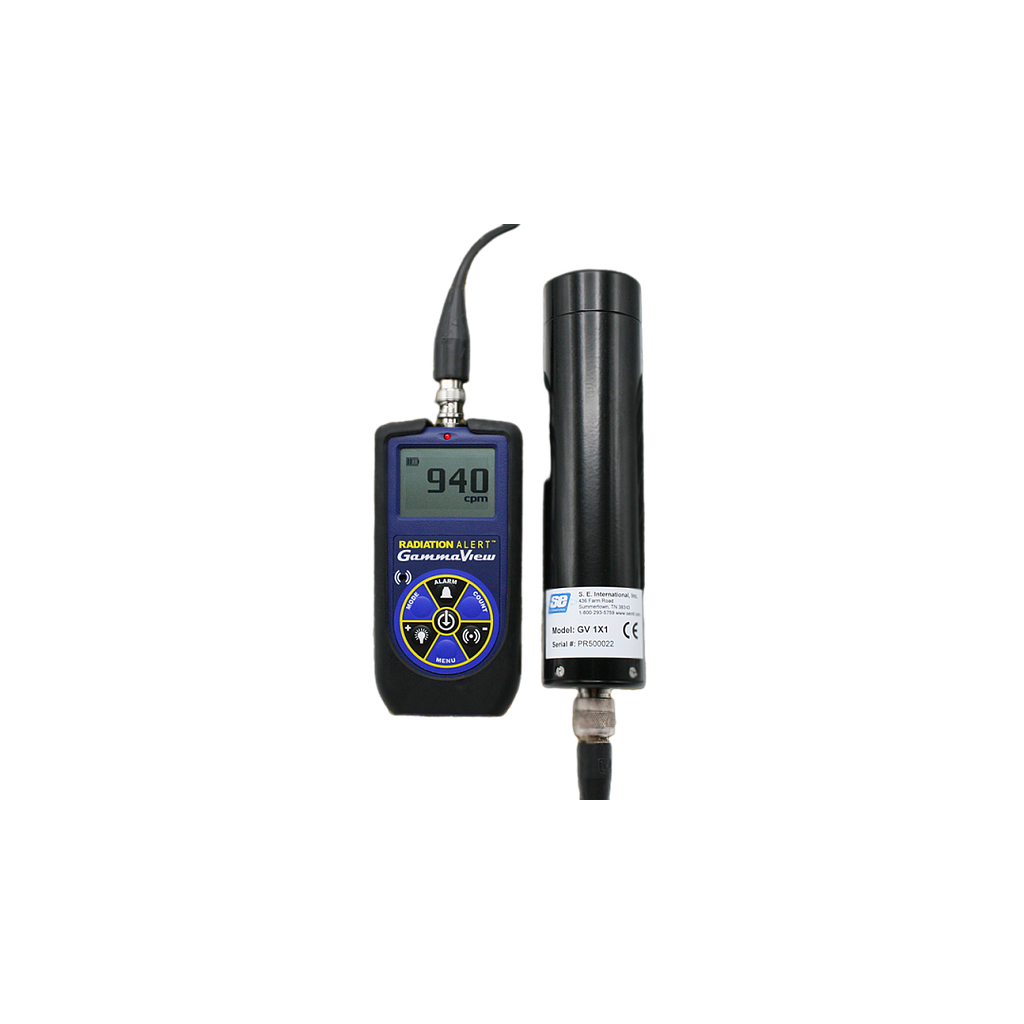

SE International GammaView Gamma Scintillator Detector (1 μR/h ~ 5 mR/h)

Gamma Scintillator Detector

1x1 NaI Scintillation Probe. 2.5 cm (1 in) dia. x 2.5 cm (1 in) thick with C Connector

The GammaView is optimized for use with the included 1x1 NaI probe.

Operating Range

mR/hr – 1 μR/h to 5 mR/h

μSv/hr - 0.001 to 50

CPM – 0 to approx. 875,000

CPS – 0 to approx. 14,584

Total Counts- 999,999

Energy Range

20 Kev to 1.5 MeV

Typical sensitivity

150 CPM/µR/hr.

Accuracy

±10% with Source Calibration (Referenced to Cs137)

Operating Voltage

Typically 500 to 1200 Volts

Selectable Alert Set Range

mR/hr - 1 μR/h to 5 mR/h

μSv/hr - 0.001 to 50

CPM - 1 to 875,000

CPS- 1 to 14,584

Pulsating beeper sounds the alert.

Display

Graphic Display with Backlight

Averaging Periods

Display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.

Anti-Saturation

Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.

Outputs

USB for use with Free Observer USB Software for PCs

Bluetooth for use with the Free Observer BLE App for Android.

Count Light

Red LED flashes with each radiation event.

Audio Indicator

Internally mounted beeper (can be switched off for silent operation)

Power Requirements

Two AA alkaline batteries (included). Approx. 500 hrs @ background.

Size

Base unit - 140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.), Probe- 5.0 X 18.5 cm (2 x 7.3 in)

Temperature Range

-15°C to +50°C (14°F to 122°F)

Humidity

10% to 70% Non-Condensing.

Weight

Base unit - 193 grams (6.8 oz) with batteries. Probe- 393 grams (13.8 oz)

Includes

NIST Certificate of Calibration, Carrying Case, Xtreme Boot, Stand, Lanyard, Mini-USB Cable, Free Observer USB Software Download, Free Observer BLE Software Download.

Options

Free Observer BLE App and Rad Responder
