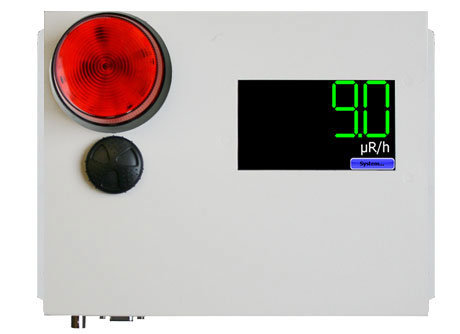

SE International AM-7128 Radiation Area Monitor (sensitivity 18 cps/mR/hr; 0.01-200 mR/hr)

OPERATING RANGE: 0.01 - 200 mR/h (0.1 - 2000 µSv/h)

TOUCH SCREEN DISPLAY: 5-digit 4.3 inch TFT 480x272 touch screen LED display

BASE DISPLAY UNITS: Can display in µR/h, mR/h, µSv/h, mSv/h, cpm, Kcpm, cps, and Kcps

RESPONSE: Varies automatically from 20 seconds to 2 seconds

INDICATORS:

Ultra-Bright Strobe and Audible Alarm

Can trigger up to three relays with DB-9 serial connection

USB VCP for computer data logging, which can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote)

ETHERNET: 10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)

CALIBRATION CONTROLS: All parameters for calibration (High Voltage, Dead Time, and Sensitivity) are accessible through either the touch screen or the included software

POWER: 12 VDC (110/220) wall mount adapter with two sets of international adapters for almost any style wall receptacle

BATTERY LIFE: Typically 6 hours in non-alarm condition; 5 hours in alarm condition

BATTERY CHARGER: Battery is continuously trickle charged when the instrument is connected to line power and turned on

CONSTRUCTION: Easy mount steel enclosure

TEMPERATURE RANGE: -10 to +50 °C (14 to 122°F)

SIZE: 20.3 x 28.6 x 10.8 cm (8 x 11.25 x 4.25 in.)

WEIGHT: 84.8 oz (5.3lbs)

INCLUDES: Software, Base Unit, Power Supply. The software can also be used to manage multiple Area Monitors in your system.

OPTIONS: External Strobe and Horn, External Detector with 50’ coax, NIST Calibration
