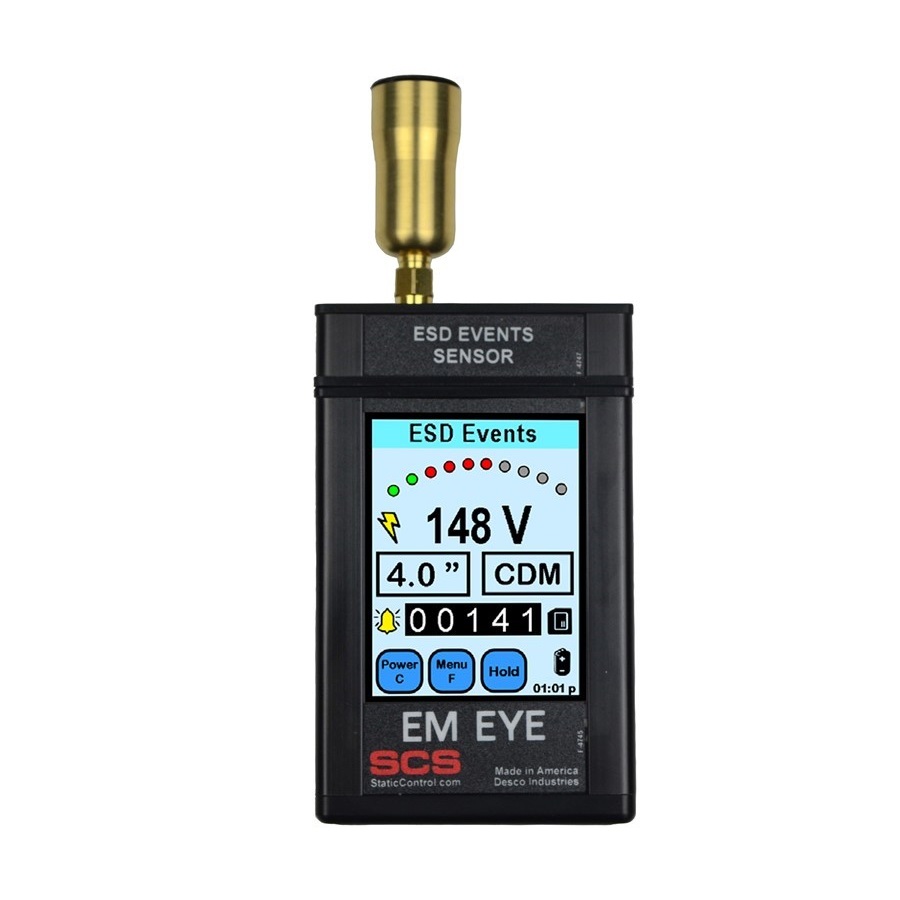

SCS CTM048-21 EM Eye - ESD Event Meter

Audio Indicators: Speaker: Beep or analog audio with selectable volume

External Data Storage: microSD Card

Recording Interval:

Peaks: 1 – 360 seconds

Average signals: 0.1 – 360 seconds

Display: Touch LCD

Size: 65 W x 32 D x 105 L mm

Headphone Jack: 3.5 mm (1/8 in.)

Power Supply/Charger:

Input: 100-240V ~ 50-60 Hz 0.2A

Output: 5.0V 1000mA

Center: Positive, ID 1.3 mm; OD 3.5 mm

ESD Event Detection Characterization Modes: Raw input for magnitude and estimated CDM, HBM, MM using proprietary algorithm

Raw Input Resolution: 1mV (1mV-15mV) ; 15 mV (15mV-1500mV) (Detection Resolution: 1mV)

Threshold (Display) Resolution: 1-10 Volts, 10-990 Volts Raw input: 1mV (1-15mV) and 15mV (15-1500mV)

Distance Detection Range: 1.3 cm (0.5 in.) – 38.1 cm (15.0 in.)

ESD Counter Range: 0 – 32,767 counts (screen count)

Hardware Setup: Adjustable Brightness, Auto-off-time

CTC115 Remote Antenna Temperature Range: -100°F to 400°F (-73°C to 204°C)
