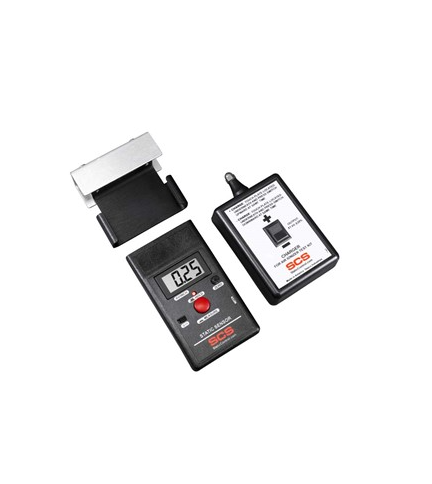

Static Sensor
Performance
Measurement Range: 0 to ±19.99 kV / inch
Measurement Accuracy: Better than ±5% of reading, ±2 counts
Measurement Stability: ±10 counts
Front Panel Meter
Voltage Display: 3-1/2 digit LED display
Sampling Rate: 3 readings per second
Features
Ranging System: LED distance indicator; aligned targets indicate 1"
Range: LED distance indicator
Rotary Zero Knob: Sets the zero-reference point
Low Battery Indicator: An LCD icon indicates when the battery is low
Hold Switch: Retains the LCD display reading when depressed
General
Dimensions: 0.9" H x 2.8" W x 4.9"L (24 mm x 70 mm x 126 mm)
Weight: 4.9 oz. (140 g) with battery
Operating Conditions
Temperature: 50 to 86ºF (10 to 30ºC)
Relative Humidity: To 80%, non-condensing
Altitude: To 2000 m
Power Requirements
Power: One (1) 9-volt alkaline battery
Operating Time: Greater than 50 hours, with a new battery at 21ºC continuous
Air Ionizer Test Kit
Conductive plate Assembly: Aluminum bracket, bare aluminum plate and teflon spacers isolate plate from bracket
Voltage Output: 1/10,000 of measured voltage
Conductive plate Area: 2.95" W x 1.18" L (7.5 x 3.0 cm)
Conductive plate Assembly Weight: 2.4 oz. (68 g)
Charger Dimensions: 1.1" H x 2.6" W x 4.5" L (2.8 x 6.6 x 11.4 cm)
Charger Weight: 5 oz. (140 g) with battery
Charger Power Requirements: One 9-volt alkaline battery
Charger Output (using Static Sensor with conductive plate): 1.1 kV minimum for ± voltage
