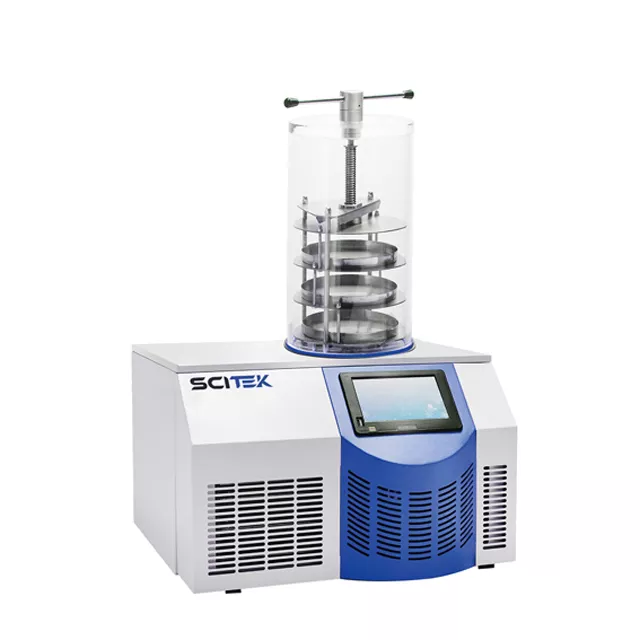

"Type: Stoppering chamber
Freeze Drying Area (m2) : 0.09
Tray (Qty): 3pcs
Tray Size (ΦxH)(mm): Φ200x20
Height Between Trays (mm) : 70(average)
Condenser Temperature (℃) : -60
Condenser Capacity (L) : 6.5
Condenser Size (DiameterxH)(mm) : Φ215x190
Vacuum Degree (No-loading) (Pa) : ≤5
Ice Condensing Capacity (kg/24h) : 3
Loading Capacity/ Shelf (mL) : 300
Total Loading Capacity (mL): 900
Drying Chamber Size (Standard): Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22: 195
Total Qty. of Vial Φ16: 360
Total Qty. of Vial Φ12 : 690
Refrigerant Type : CFC-free
Standard Accessories:
Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes), Conical-mouth flask 500mLx8 pcs
Consumption: 0.85kW
Electricity: AC220V,50Hz(standard), other electricity type can be customized
External Size (WxDxH)(mm): 600x540x374/880
Shipping Size (WxDxH) :
+Main Body : 670x700x560mm
+Drying Chamber : 410x410x640mm
+Vacuum Pump: 220x580x370mm
Gross Weight: 110kg"
