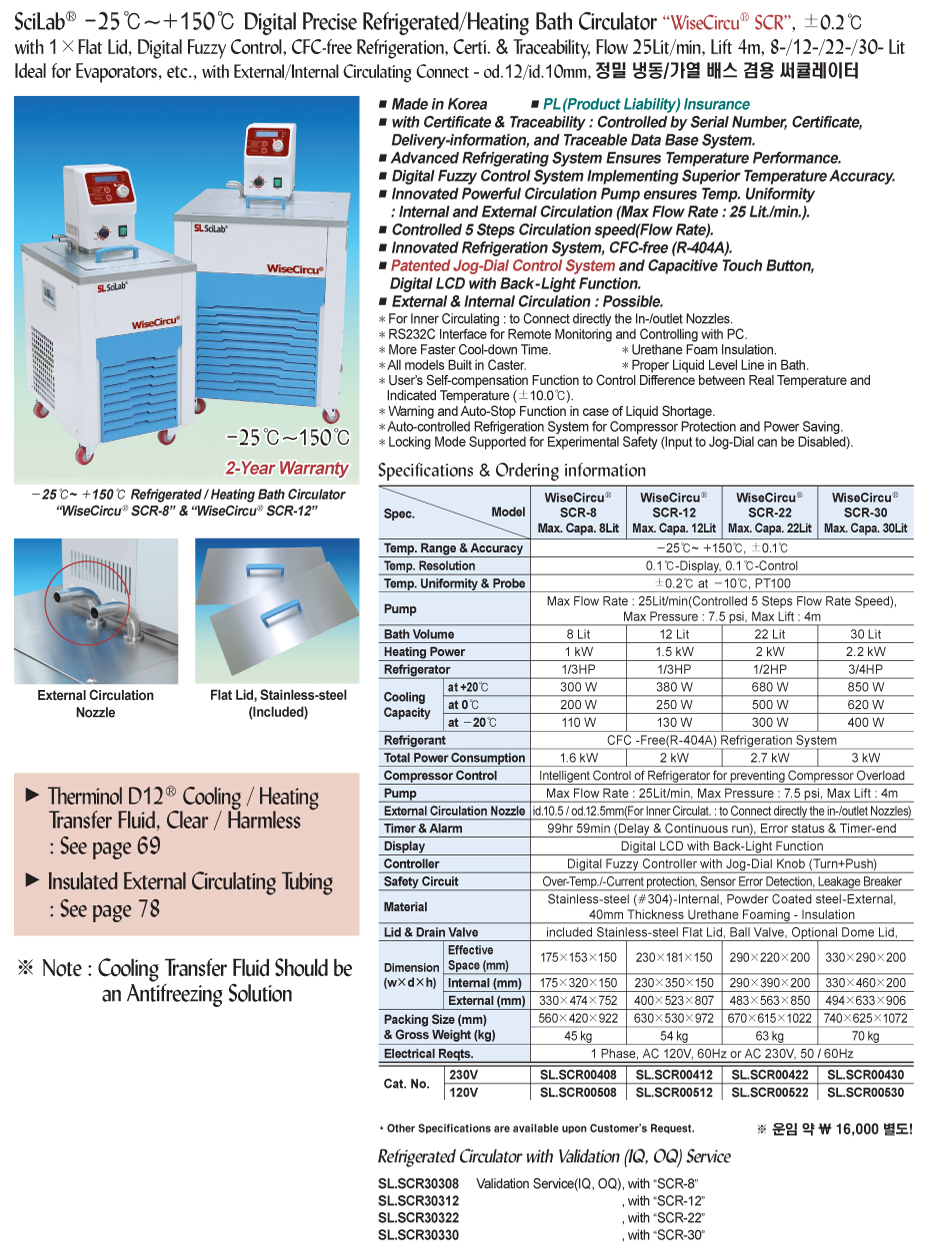

Temp. Range & Accuracy: -25C-+150°C, ±0.1C
Temp. Resolution: 0.1 °C-Display, 0.1 °C-Control
Temp.Uniformity & Probe: ±0.2°C at -10°C, PT100
Pump: Max Flow Rate: 25Lit/min(Controlled 5 Steps Flow Rate Speed),
Max Pressure: 7.5 psi, Max Lift: 4m
Bath Volume: 22 Lit
Heating Power: 2 kW
Refrigerator: 1/2 HP
Cooling Capacity:
+ at +20°C: 680 W
+ at 0°C: 500 W
+ at -20°C: 300 W
Refrigerant: CFC -Free(R-404A) Refrigeration System
Total Power Consumption: 2.7 kW
Compressor Control: Intelligent Control of Refrigerator for preventing Compressor Overload
Pump: Max Flow Rate: 25Lit/min, Max Pressure: 7.5 psi, Max Lift: 4m
External Circulation Nozzle: id.10.5/od.12.5mm(For Inner Circulat.: to Connect directly the in-/outlet Nozzles)
Timer & Alarm: 99hr 59min (Delay & Continuous run), Error status & Timer-end
Display: Digital LCD with Back-Light Function
Controller Digital: Fuzzy Controller with Jog-Dial Knob (Turn+Push)
Safety Circuit: Over-Temp./-Current Protection, Sensor Error Detection, Leakage Breaker
Material: Stainless-steel (#304)-Internal, Powder Coated steel-External, 40mm Thickness Urethane Foaming Insulation
Lid & Drain Valve: included Stainless-steel Flat Lid, Ball Valve, Optional Dome Lid,
Dimension (wXdXh):
Effective Space (mm): 290x220x200
Interal (mm): 290 x 390 x 200
External (mm): 483 x 563 x 850
Packing Size (mm) & Gross Weight (kg): 670x615x1022 / 63 kg
Electrical Reqts.: 1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz
