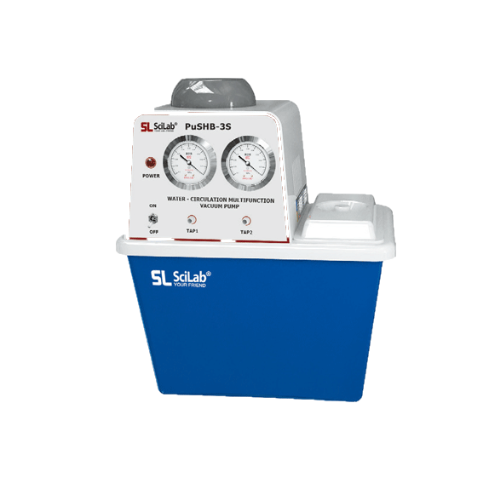

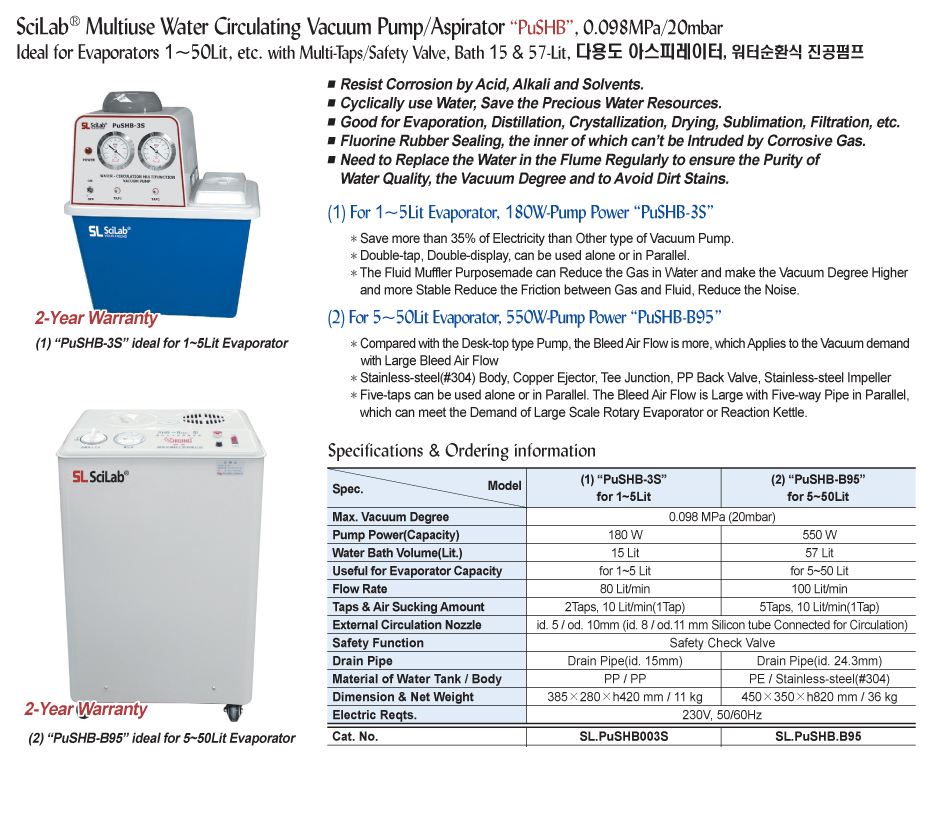

SciLab SL.PuSHB003S Multiuse Water Circulating Vacuum Pump/Aspirator (15L, 0.098 MPa)

Max. Vacuum Degree: 0.098 MPa (20mbar)

Pump Power(Capacity): 180 W

Water Bath Volume(Lit): 15 Lit

Useful for Evaporator Capacity: for 1~5 Lit

Flow Rate: 80 Lit/min

Taps & Air Sucking Amount: 2 Taps, 10 Lit/min (1 Tap)

External Circulation Nozzle: id. 5/ od. 10mm (id. 8/ od. 11mm Silicon tube Connected for Circulation)

Safety Function: Safety Check Valve

Drain Pipe: Drain Pipe(id. 15 mm)

Material of Water Tank/Body: PP/PP

Dimension & Net Weight: 385 x 280 x h420 mm/11 kg

Electric Reqts.: 230V, 50/60Hz
