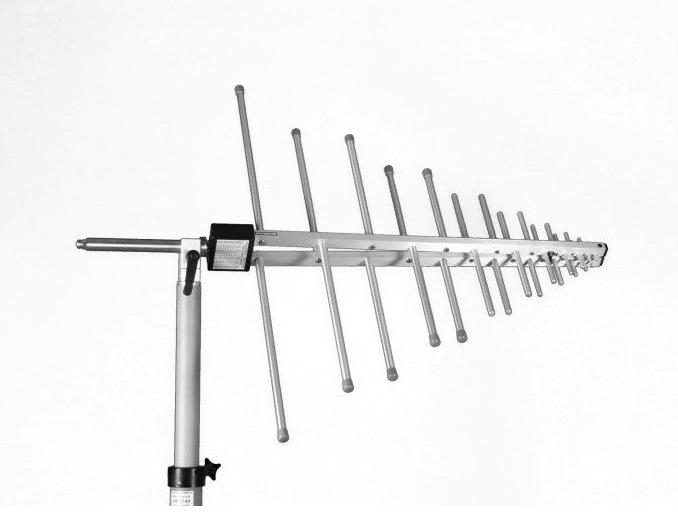

Schwarzbeck VUSLP 9111B Log Periodic Antenna (200 MHz ~ 3 GHz)

Nominal frequency range: 200 MHz ... 3 GHz

Usable frequency range: 180 MHz ... 4 GHz

Isotropic gain: typ. 7 dBi ± 1 dB

Antenna factor: 11 ... 33 dB/m

Nominal impedance: 50 Ω

Standing wave ratio (SWR) max.: < 2.8 (f > 2.3 GHz)

Standing wave ratio (SWR) typical: < 1.5

Front to back ratio: typ. 20 dB

Cross polarisation: >20 dB (180 MHz ... 1.3 GHz)

3 dB beamwidth typ. (E-Plane): 45° – 65°

3 dB beamwidth typ. (H-Plane): 90° – 120°

Max. input power: 1000 W (<300 MHz) / 300 W (1 GHz)

Connector type: N-connector female

Mount: 22 mm tube, indexing ring

Dimensions (W × L × T): 776 × 900 × 82 mm

Weight: 1.7 kg

Datasheet
