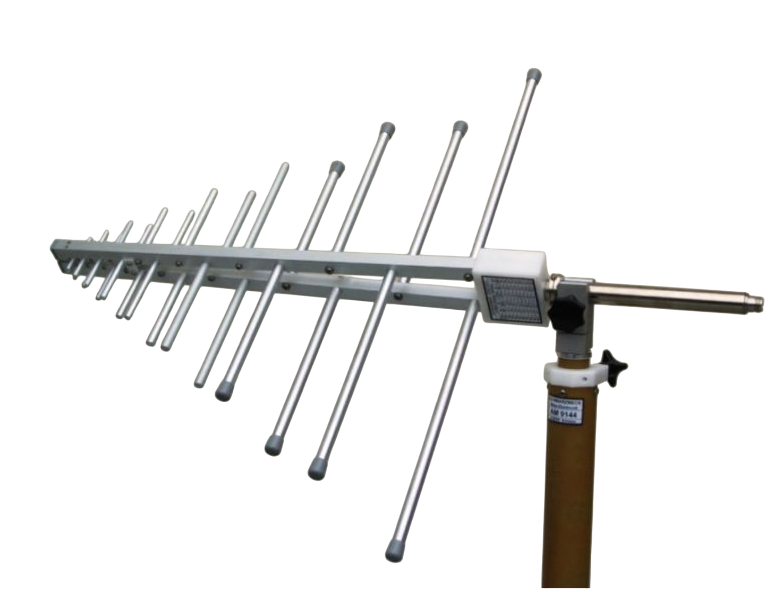

Schwarzbeck VUSLP 9111 Log Periodic Antenna (230 MHz ~ 2.3 GHz)

Nominal frequency range: 230 MHz ... 2.3 GHz

Usable frequency range: 200 MHz ... 4 GHz

Isotropic gain: 7 dBi ± 1 dB

Antenna factor: 12 ... 32 dB/m

Nominal impedance: 50 Ω

Standing wave ratio (SWR) max.: < 2.5

Standing wave ratio (SWR) typical: < 1.5

Front to back ratio: 20 dB

Cross polarisation: >10 dB (230 MHz ... 1 GHz)

3 dB beamwidth typ. (E-Plane): 45° – 65°

3 dB beamwidth typ. (H-Plane): 90° – 120°

Max. input power: 1000 W (≤230 MHz) / 300 W (1 GHz)

Connector type: N-connector female

Mount: 22 mm tube, indexing ring

Dimensions (W × L × T): 650 × 790 × 82 mm

Weight: 1.6 kg

Storing case (optional) (W × L × H): 725 × 610 × 145 mm
