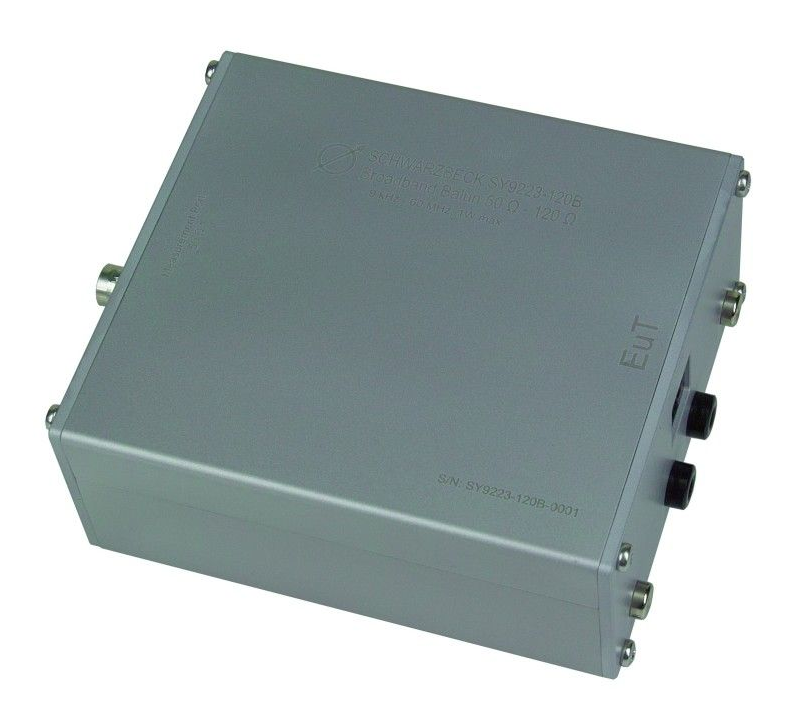

Frequency range: 9 kHz – 60 MHz
Insertion loss: 10 dB
Flatness: < ±1 dB
Connector: BNC
Input impedance: 50 Ω unsymmetrical
Input impedance matching: >15 dB @ 9 kHz – 60 MHz
Output connectors: RJ45 Pin 4+5, 4 mm banana female
Output impedance: 120 Ω symmetrical
Max. input power: 1 W
Test voltage primary-secondary: 200 V DC
Ground connector: 4 mm socket
Dimensions: 130 × 105 × 48 mm
Weight: 470 g
Housing material: Aluminium
