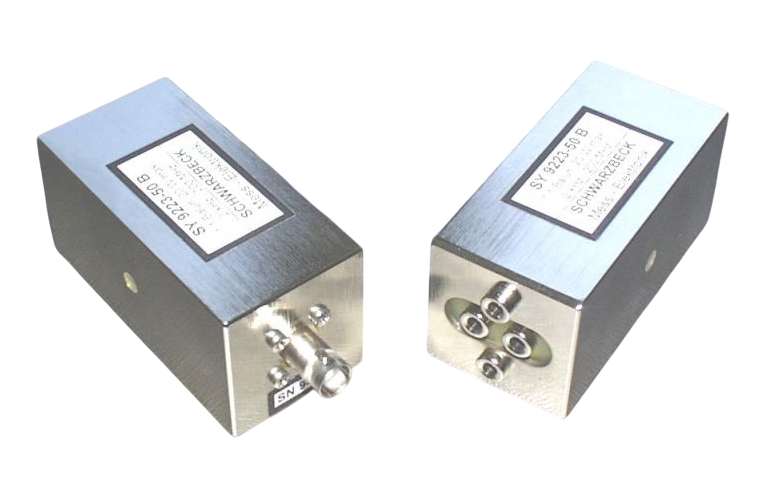

Nominal Frequency Range: 3 kHz – 30 MHz
Usable Frequency Range: 1 kHz – 100 MHz
Attenuation (power) per Balun: max. 2 dB, typically < 0.5 dB
Maximum Power: 20 W
Voltage Transformation: 1:1 (0 dB)
Impedance Transformation: 1:1
Inductance at Low Frequency: ≅ 3.3 mH
Insulation Strength Prim.-Sec.: > 500 VAC
Weight: 150 g
Coaxial Connector: BNC jack
Symmetrical Terminals: 4 mm laboratory jack
Connector to IN 9223-PLC (included within the scope of delivery of the SY 9223-PLC): SCON-37, 4 mm twin-plugs, 37 mm long
