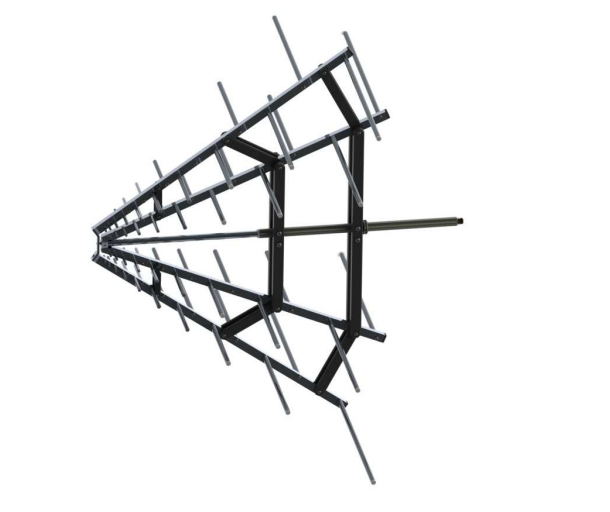

Schwarzbeck STLP 9128 C Stacked Log.-Periodic Antenna (200 MHz ~ 1.5 GHz)

Nominal Frequency Range: 200 MHz ... 1.5 GHz

Usable Frequency Range: 150 MHz ... 4 GHz

Isotropic Gain: 9 ... 10 +/- 1 dBi

Antenna Factor: 8 ... 24 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio (SWR) typical: < 1.5

Front to Back Ratio: > 16 dB

Cross Polarisation: > 30 dB (200 MHz ... 1 GHz)

3 dB Beamwidth typ. (E-Plane): 64° - 53°

3 dB Beamwidth typ. (H-Plane): 63° - 44°

Connector (female): 7/16, N

Max. Input Power (7/16): 3 kW (intermittent), 2 kW (continuous)

Max. Input Power (N): 2 kW (intermittent), 1 kW (continuous)

Mount: 22 mm Tube

Width × Length × Height: 930 × 890 × 940 mm

Weight: 4.6 kg

  Datasheet
