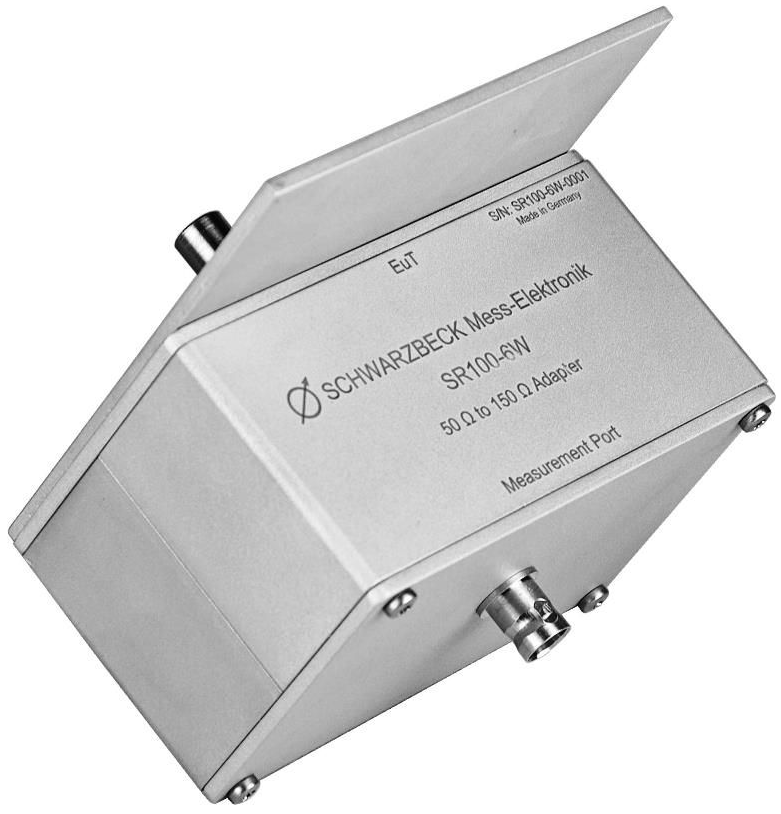

Schwarzbeck SR100-6W 50 Ω → 150 Ω Adapter (DC – 500 MHz)

Frequency Range: DC – 500 MHz

Max. Power: 6 W

Line Resistance: 100 Ω

Output: 4 mm Banana jack

Insertion Loss (2 × SR100-6 W in series): 9.5 dB ±0.5 dB

Input Connector: BNC 50 Ω

Weight: 340 g

Dimensions (W × H × D): 105 × 64 × 70 mm

Reference Plane (demountable): 100 × 100 × 3 mm

Grounding: Case bottom

Housing Material: Aluminium

Acc. to Standards: EN 61000-4-6, EN 55015, CISPR 15, CISPR 16-1-x, CISPR 16-2-x
