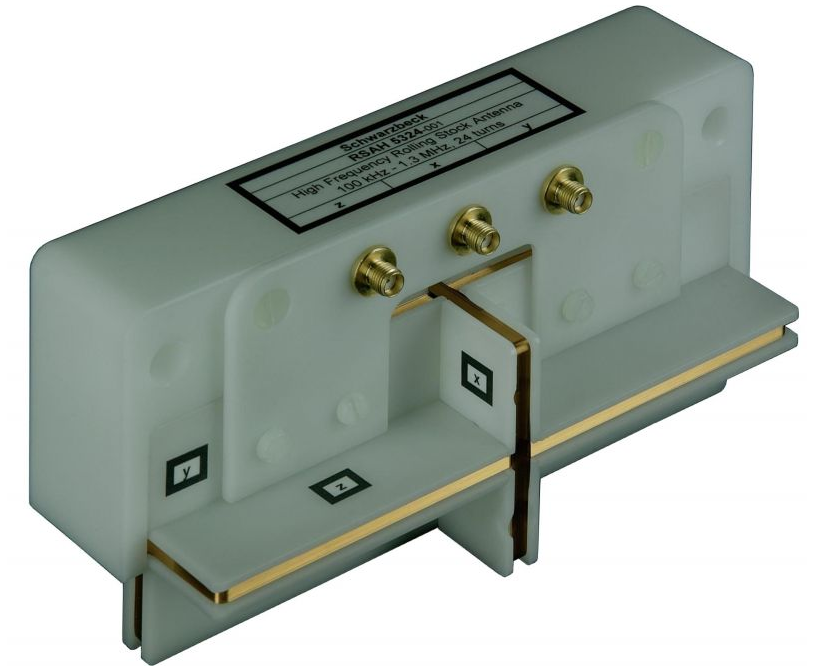

Loop Dimensions x: 50 × 50 mm
Loop Dimensions y, z: 150 × 50 mm
Number of turns: 24
Mechanical Dimensions: 166 × 81 × 60 mm
Mounting Holes: Ø 8.5 × 37 mm
Mounting Hole Spacing: 145 mm
Terminals (female): 3 × SMA
Nominal Frequency Range: 100 kHz – 1.3 MHz
Usable Frequency Range: 10 kHz – 2 MHz
Inductance x-Loop: 80 µH
Resistance x-Loop: 5 Ω
Capacitance x-Loop: 7 pF
Resonance Frequency x-Loop: 6 – 7 MHz
Inductance y-, z-Loops: 180 µH
Resistance y-, z-Loops: 9.5 Ω
Capacitance y-, z-Loops: 11 pF
Resonance Frequency y-, z-Loops: 3 – 4 MHz
Weight: 440 g
