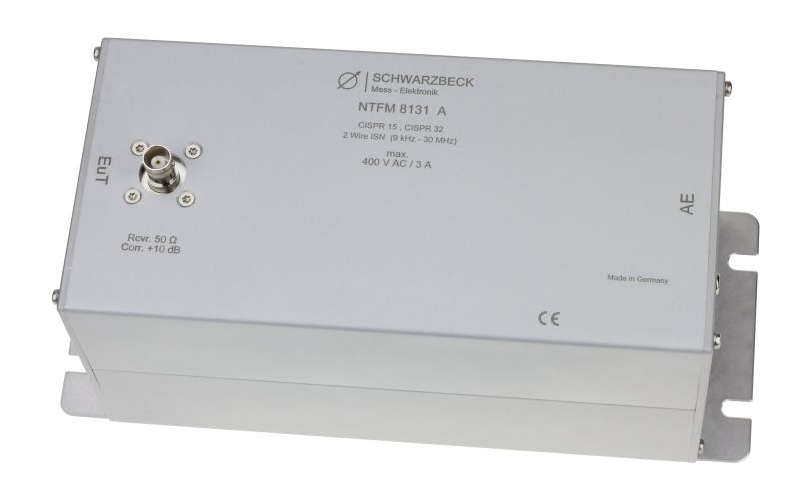

Schwarzbeck NTFM 8131 A 2-Wire Impedance Stabilisation Network ((9 kHz) 150 kHz – 30 MHz)

Frequency Range: (9 kHz) 150 kHz – 30 MHz

Impedance (asymm.): 150 Ω ± 20 Ω

Phase (asymm.): 0° ± 20°

Longitudinal Conversion Loss (LCL): acc. CISPR 32 Table C.2

Voltage Division Ratio for asymmetrical voltage: 10 dB ± 1.5 dB

EuT, AT Terminals: 4 mm jacks, equilateral triangle, 19 mm distance

Measuring Port: 50 Ω BNC

Max. Voltage: 400 V AC

Max. Current: 3 A

Insertion Loss (Differential Mode): < 3 dB (100 Ω sym.)

Outer dimensions (H × W × D): 119 × 250 × 105 mm

Weight approx.: 1.5 kg

According to standards: CISPR 16-1-2, CISPR 32, CISPR 15
