Frequency range: 0.1 – 150 MHz
Max. cont. current: 500 A
Max. current (limited time): 800 A
Max voltage (DC): 1000 V
Max. voltage (AC 50/60 Hz): 700 Vrms
Max. voltage (AC 400 Hz): 300 Vrms
Impedance: 5 µH || 50 Ω (±10%)
DC-Resistance mains–EuT: < 1.3 mΩ
Impedance (50 Hz): 2 mΩ
Impedance (400 Hz): 12.6 mΩ

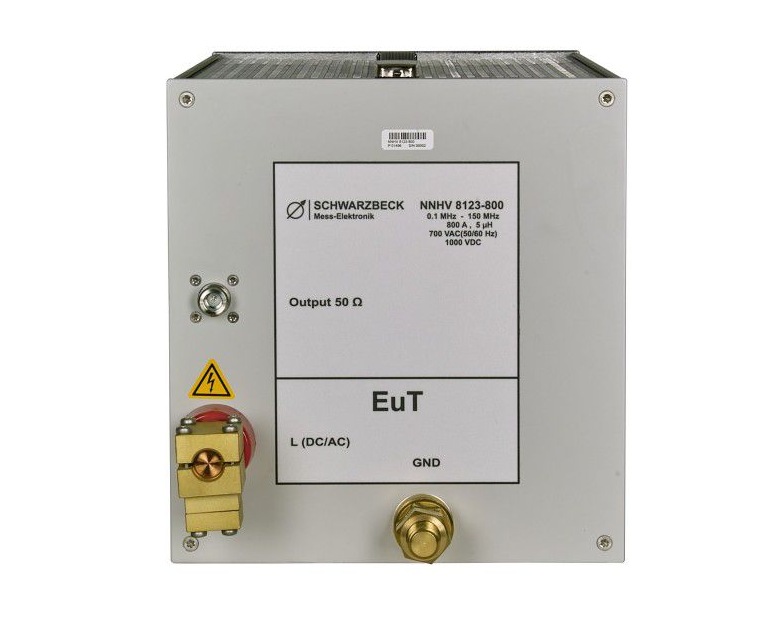

EuT connectors: Schraubklemme siehe Foto / screw terminal, see foto
Clamping range HV-cable: 4 – 15 mm
Measuring port: N-connector
Dimensions (W × H × D): 226 × 241 × 407 mm
Weight: 12.2 kg
