Schwarzbeck MDS 21 C Absorbing Clamp (30 MHz – 1000 MHz) | EMIN.CO.TH

EMI and EMC Test System
Schwarzbeck MDS 21 C Absorbing Clamp (30 MHz – 1000 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

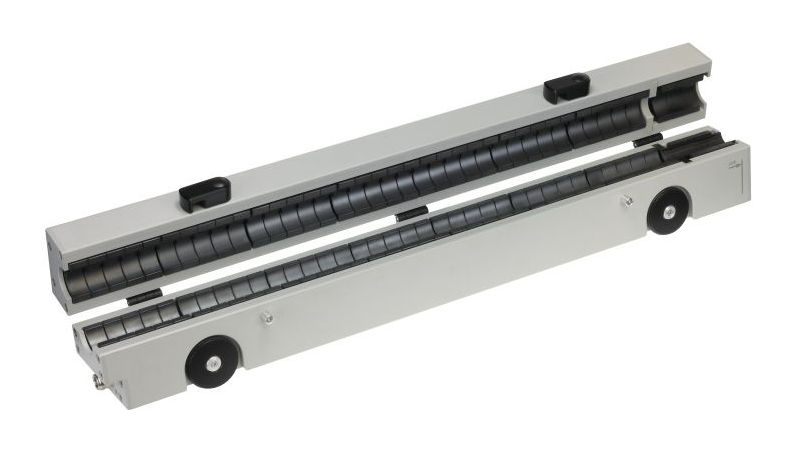

Product image

Schwarzbeck MDS 21 C Absorbing Clamp (30 MHz – 1000 MHz)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelMDS 21 C

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Nominal Frequency Range: 30 MHz – 1000 MHz

Nominal Impedance: 50 Ω

Insertion Loss (nominal): 17 dB

Decoupling DR: > 21 dB

Decoupling DF: > 30 dB

Max. Current: 30 A

Max. RF Input Power: 20 W

Max. Cable Diameter: 17 mm

Connector Type: N-female

Dimensions (L × W × H): 645 × 66 (110) × 102 mm

Track: 58 mm

Ground Clearance: 8 mm

Wheel Width: 7 mm

Weight: 5.8 kg

Datasheet
