Schwarzbeck HPF 150 k High Pass Filter (150 kHz – 30 MHz) | EMIN.CO.TH

Signal Conditioning
Schwarzbeck HPF 150 k High Pass Filter (150 kHz – 30 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

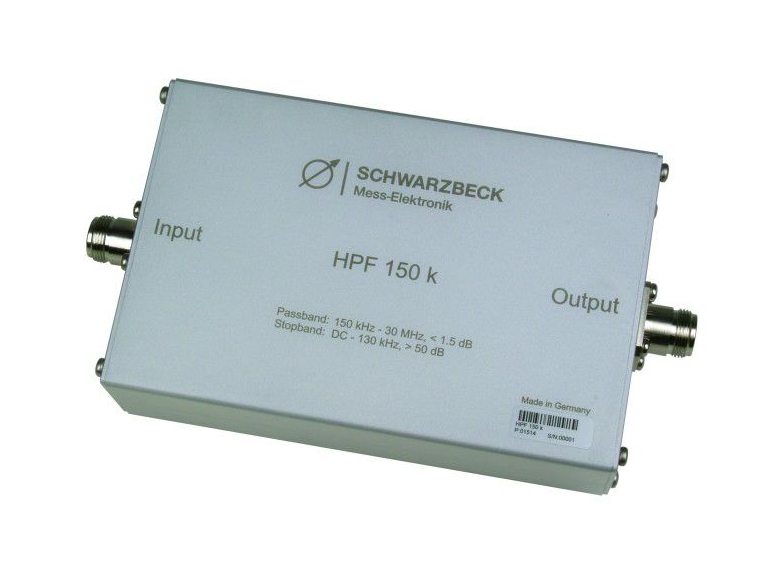

Product image

Schwarzbeck HPF 150 k High Pass Filter (150 kHz – 30 MHz)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelHPF 150 k

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Passband: 150 kHz – 30 MHz

Stopband: DC – 130 kHz

Nominal impedance: 50 Ω

Passband loss: typ. < 2 dB

Passband VSWR: typ. < 2

Stopband loss: > 50 dB @ ≤ 130 kHz

Housing material: Aluminium

Housing dimensions (with connector): 50 × 105 × 240 mm

Weight: approx. 860 g

Connector: 2 × N-female

Datasheet
