Schwarzbeck HHDF 5110 A Handheld Direction Finder (9 kHz … 30 MHz) | EMIN.CO.TH

Magnetic field measuring device
Schwarzbeck HHDF 5110 A Handheld Direction Finder (9 kHz … 30 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

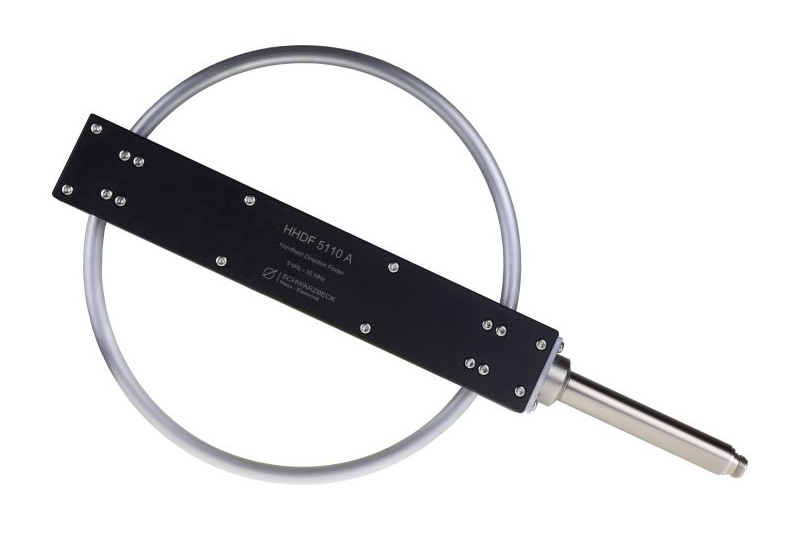

Product image

Schwarzbeck HHDF 5110 A Handheld Direction Finder (9 kHz … 30 MHz)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelHHDF 5110 A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Nominal Frequency Range: 9 kHz … 30 MHz

Nominal Impedance: 50 Ω

Connector: N-Buchse / N-female

3 dB Beamwidth H-plane: typ. 94°

E-plane: omnidirectional

Antenna factor kH: -15 - 45 dB/Ohm m

Antenna factor kE: 36.5 - 96.5 dB/m

Mounting Tube: 22 mm

Dimensions: 494 x 300 x 40 mm

Weight: 900 g

Datasheet
