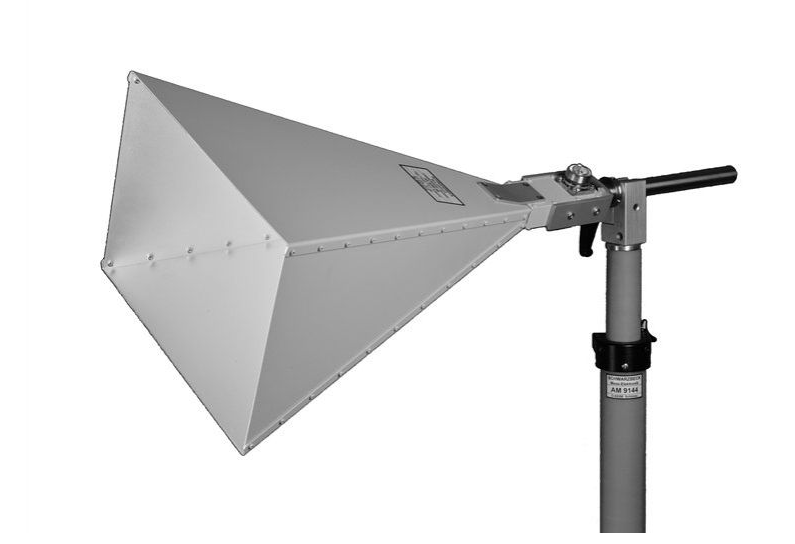

Schwarzbeck HA 9250-48 Standard Horn Antenna (4 – 8 GHz)

Frequency Range (nominal): 4-8 GHz

Frequency Range (useable): 3.7-9 GHz

Gain: ≈ 20 dBi

Antenna Factor: 23...30 dB/m

VSWR: typ. < 2

Front to Back Ratio: typ. > 27 dB

Half Power Beamwidth (E-Plane): 16°

Half Power Beamwidth (H-Plane): 15°

6 dB Beamwidth (E-Plane): 22°

6 dB Beamwidth (H-Plane): 24°

Connector: N, opt. 7/16 (f<7.5 GHz)

Mounting Tube: 22 x 200 mm

Dimensions: 226 x 303 x 695 mm

Weight: 1.7 kg

Material: Aluminium
