Nominal Frequency Range: 9 kHz – 30 MHz
Connector: N-female, 50 Ω
Antenna Factor for fict. E-field strength: 20 dB/m
Antenna Factor for H-field strength: -31.5 dB/Ωm

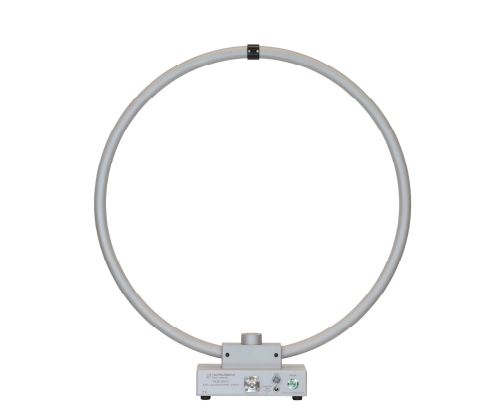

Loop Diameter: 0.5 m
Field Strength Measuring Range (QP-Detector / 9 kHz IF-Bandwidth): 31 – 140 dBμV/m (1 MHz)
Field Strength Measuring Range (AV-Detector / 200 Hz IF-Bandwidth): 11 – 140 dBμV/m (1 MHz)
Frequency Response: < ±1 dB
VSWR at “Output”: < 2
Operation time with full battery capacity: > 12 h (typ. 20 h)
Battery: 12 V NiMH 1.9 Ah
Operation Indicator: Green LED > 10.6 V
Battery Reserve Indicator: Yellow LED 9.7 V – 10.6 V
Tripod Mounting Thread (downside): 3/8", 1/4"
Grip Mounting Thread (upside): 3/8"
Dimensions: 530 × 590 × 110 mm
Weight: 1.9 kg
