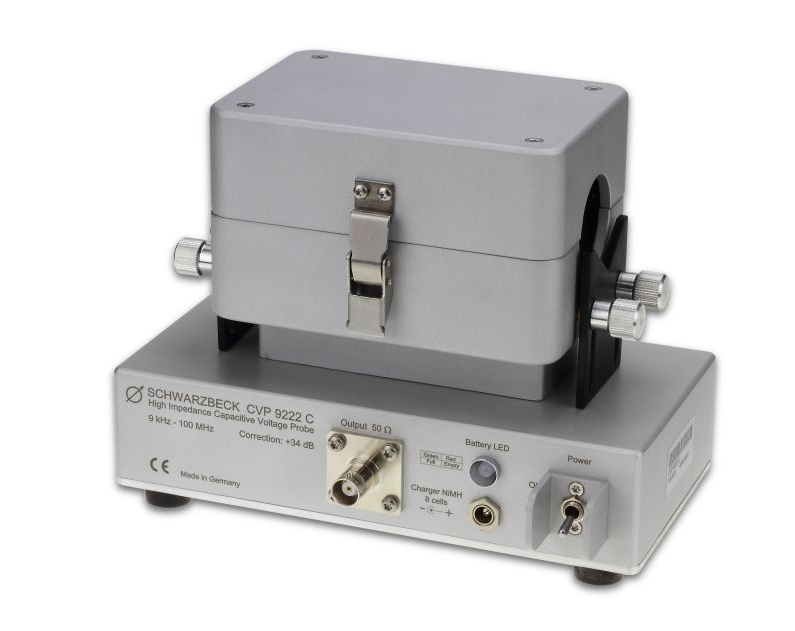

Schwarzbeck CVP 9222 C High Impedance Capacitive Voltage Probe (9 kHz – 100 MHz)

Frequency range: 9 kHz – 100 MHz

Nominal insertion loss in 50 Ω system: 34 dB (8 mm)

Frequency flatness: typ. < ±0.5 dB

Shielding effect against external fields: typ. 50 dB

Max. peak voltage: 30 V

Output standing wave ratio (VSWR): < 1.2

Nominal clamp diameter: 32 mm

Added shunt capacitance: typ. 4 pF

Connector: BNC

Power supply: 8 × NiMH cells, size AA

Battery lifetime: > 40 h

Recommended automatic charging adapter (optional): Ansmann ACS 410 / ACS 110

Dimensions: 110 × 180 × 140 mm

Weight: 2 kg
