Schwarzbeck CMAD 1614 Common Mode Absorption Device (30 MHz – 200 MHz) | EMIN.CO.TH

EMI and EMC Test System
Schwarzbeck CMAD 1614 Common Mode Absorption Device (30 MHz – 200 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

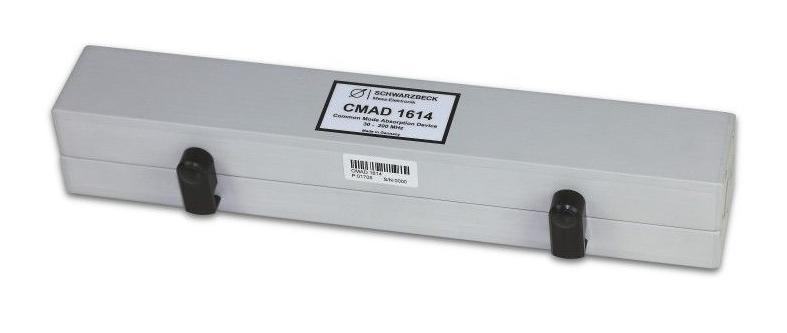

Product image

Schwarzbeck CMAD 1614 Common Mode Absorption Device (30 MHz – 200 MHz)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelCMAD 1614

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency Range: 30 MHz – 200 MHz

Specified in: CISPR 16-1-4

Useable Frequency Range: 10 MHz – 1 GHz

S11 (30 MHz): 0.6 – 0.75

S11 (200 MHz): 0.4 – 0.55

S21: < 0.25

Max. Cable Diameter: 26 mm

Housing Material: PVC

Housing Dimensions: 66 × 70 × 414 mm

Weight: 3.2 kg

Datasheet
