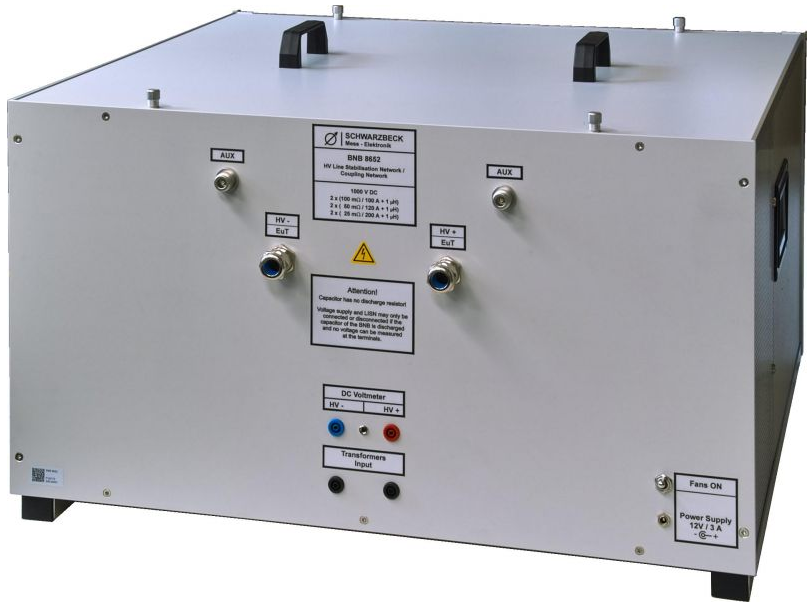

Schwarzbeck BNB 8652 HV Line Stabilisation Network (10 Hz … 150 kHz, 1000 VDC)

Max. voltage: 1000 VDC

Max. DC-current: 100 A / 2x 100 mΩ; 120 A / 2x 50 mΩ; 200 A / 2x 25 mΩ

Impedance:

2x 100 mΩ in series with 10 mF

2x 50 mΩ in series with 10 mF

2x 25 mΩ in series with 10 mF

Self-inductance: 0.5 µH

LISN inductance: 2 x 1 µH

Frequency range of the coupling transformers: 10 Hz...150 kHz

Max. operating current of the coupling transformers: 80 A

Maximum current at transformers input: 30 A AC

Weight: 80 kg

Dimensions (W x H x D): 670 mm x 420 mm x 660 mm

Datasheet
