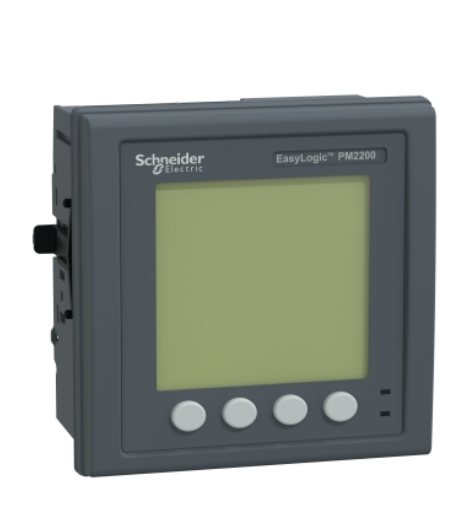

SCHNEIDER PM2220 Power And Energy Meter

Device application: Power monitoring, Sub billing

Power quality analysis: total harmonic distortion up to the 15th harmonic

Measurement accuracy

Apparent power +/- 1 %

Active energy +/- 1 %

Reactive energy +/- 1 %

Active power +/- 1 %

Voltage +/- 0.5 %

Power factor +/- 0.01

Current +/- 0.5 %

Frequency +/- 0.05 %

Measurement current: 5…6000 mA

Measurement voltage

35…480 V AC 50/60 Hz between phases

20…277 V AC 50/60 Hz between phase and neutral

480…999000 V AC 50/60 Hz with external VT

Frequency measurement range: 45…65 Hz

[Us] rated supply voltage

44...277 V AC 45...65 Hz +/- 10 %

44...277 V DC +/- 10 %

Network frequency

50 Hz

60 Hz

Ride-through time

100 ms 120 V AC typical

400 ms 230 V AC typical

50 ms 125 V DC typical

[In] rated current

1 A

5 A

Maximum power consumption in VA: 6 VA at 277 V AC

Maximum power consumption in W:

3.3 W (power lines (AC))

2 W at 277 V (power lines (DC))

Input impedance

Current (impedance <= 0.3 mOhm)

Voltage (impedance > 5 MOhm)

Tamperproof of settings: Protected by access code

Display type: Backlit LCD

Display colour: Monochrome

Display resolution: 128 x 128 pixels

Control type: 4 x button

Local signalling

Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)

Green LED: module operation and integrated communication

Number of inputs: 0

Number of outputs: 0

Communication port protocol: Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V

Communication port support: Screw terminal block: RS485

Data recording:

Time stamping

Min/max for 8 parameters

Function available: Real time clock

Sampling rate: 64 samples/cycle

Cybersecurity: Enable/disable communication ports

Communication service: Remote monitoring

Mounting mode: Clip-on

Mounting position: Vertical

Mounting support: Framework

Provided equipment: 1 x installation guide

Material: Polycarbonate

Width: 96 mm

Depth

Total : 76.09 mm

Embedded : 61.64 mm

Height: 96 mm

Product weight: 300 g
