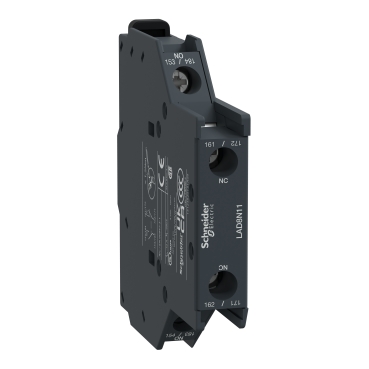

SCHNEIDER LAD8N11 Auxiliary contact block (1NO + 1NC)

Range compatibility:

TeSys Deca LC1D09…95 AC coil

TeSys Deca LC1D115/150

TeSys Deca LC1D40A…80A AC Coil

TeSys Deca CAD AC coil

TeSys F LC1F

Mounting location: Side

Pole contact composition: 1 NO + 1 NC

Contacts operation: Instantaneous

[Ue] rated operational voltage: 690 V AC 25...400 Hz

[Ie] rated operational current:

6 A at 120 V AC-15

1.04 A at 690 V AC-15

0.55 A at 125 V DC-13

0.1 A at 600 V DC-13

[Ui] rated insulation voltage:

690 V conforming to IEC 60947-5-1

600 V conforming to UL

600 V conforming to CSA

[Ith] conventional free air thermal current: 10 A (at 60 °C)

Standards

EN/IEC 60947-5-1

UL 60947-5-1

CSA C22.2 No 60947-5-1

IEC 60335-1:Clause 30.2

IEC 60335-2-40:Annex JJ

UL 60335-2-40:Annex JJ

Product certifications:

CB Scheme

UL

CSA

CCC

EAC

UKCA

Complementary

Irms rated making capacity

140 A AC conforming to IEC 60947-5-1

250 A DC conforming to IEC 60947-5-1

Permissible short-time rating

100 A 1 s

120 A 500 ms

140 A 100 ms

Protection type: GG fuse 10 A

Mechanical durability: 30 Mcycles

Minimum switching current: 5 mA

Minimum switching voltage: 17 V

Non-overlap time

1.5 ms on de-energisation no overlap between NC and NO contact

1.5 ms on energisation no overlap between NC and NO contact

Insulation resistance: > 10 MOhm

Connections - terminals

Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end

Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end

Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end

Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end

Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end

Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end

Tightening torque:

1.7 N.m - with screwdriver flat Ø 6 mm

1.7 N.m - with screwdriver Philips No 2

1.7 N.m - with screwdriver pozidriv No 2

Height: 76 mm

Width: 12.5 mm

Depth: 76 mm

Environment

Environmental characteristic: Normal environment

IP degree of protection: IP20 conforming to IEC 60529

Protective treatment: TH conforming to IEC 60068

Ambient air temperature for storage: -60…80 °C

Ambient air temperature for operation: -5…60 °C

Operating altitude: 3000 m
