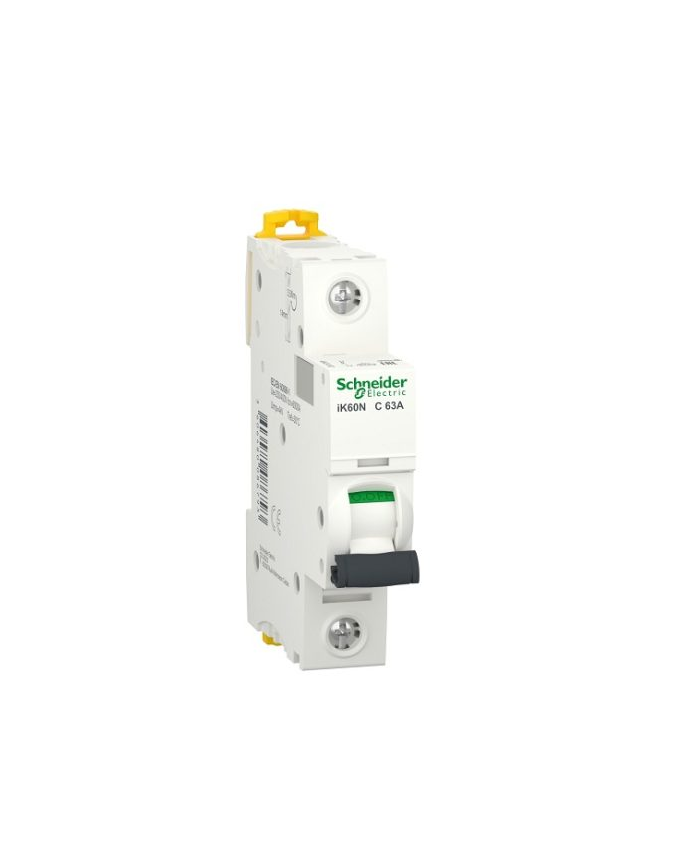

Poles description: 1P
Number of protected poles: 1
[In] rated current: 63 A at 30 °C
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Suitability for isolation: Yes conforming to EN/IEC 60898-1
Standards: EN/IEC 60898-1
Complementary
Network frequency: 50/60 Hz
Magnetic tripping limit: 5...10 x In
[Ics] rated service breaking capacity: 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz
Limitation class: 3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage: 440 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 60898-1
Contact position indicator: No
control type: Toggle
local signalling: ON/OFF indication
Mounting mode: Clip-on
Mounting support: DIN rail
9 mm pitches: 2
Height: 85 mm
Width: 18 mm
Depth: 78.5 mm
Net weight: 100 g
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Locking options description
Padlocking device: Connections - terminals
Tunnel type terminal (top or bottom) 1…35 mm² rigid
Tunnel type terminal (top or bottom) 1…25 mm² flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
Earth-leakage protection: Without
Environment
IP degree of protection
IP20 conforming to IEC 60529
Pollution degree
2 conforming to EN/IEC 60898-1
Overvoltage category: II
ambient air temperature for operation: -25…60 °C
Ambient air temperature for storage: -40…85 °C
